SCM CNC-Bearbeitungszentrum n100 22-43C CNC workcenter

Machine valuation, machine purchase, machine sale of woodworking machines




SCM  CNC  workcenter, type Pratix n100 22, new machine built in 2017, extremely compact machine with large working area 4.286 x 2.185 mm x 150 mm, CE sign,

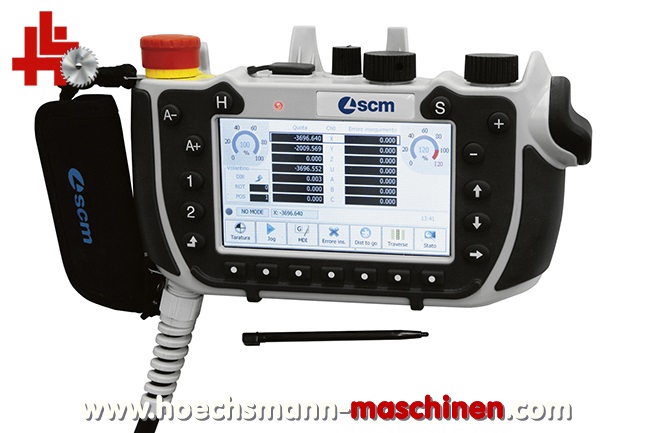

15 kW electric spindle with liquid cooling and interpolating vector axis (incl. preparation for angle gear digitally controlled by CNC control), HSK 63F tool holders, spindle speed 1.500 - 24.000 rpm, blow nozzle system with micro lubrication for tool cooling and lubrication at the electric spindle, sensor for tool length measurement, F12 Drilling unit with 12 independent M10 vertical spindles - 7 right and 5 left - 32 mm distance, incl. Inverter for drilling unit for step less speed up to 6.000 rpm, TR13 Tool changer with increased capacity (19 tool positions) for tools up to 160 mm total length, 8 backstops left and right for "A" and "D" working area (2 on the side, 6 on the back), vacuum control on half or whole table, pendulum processing possible, CNC-controlled reference stops for E and H, automatic central lubrication, 2x vacuum pumps with 250m3 each, preparation for 2nd vacuum pump available, central vacuum suction, bumper safety system, mobile control unit with HP computer, increased performance for HP computer, TFT flat screen, "TEC PAD" 7" touch screen remote control for machine functions , Software Xilog Maestro, free-form nesting module for Xilog Maestro, additional dongle for Xilog Maestro, air conditioning for control cabinet.

SCM n100 22-43C CNC Bearbeitungszentrum

To avoid trouble, please note the following important information:

All prices are net plus statutory VAT.

Sales exclusively to commercial customers.

Some of the machines contain accessories that are subject to a surcharge. Reservations only with a deposit. All used and demonstration machines are sold as is, with no warranty.

Only written agreements apply.

Payable immediately before or at the latest upon delivery or by leasing (by arrangement). Delivery difficulties (difficult entry into the building, lack of equipment for unloading, etc.) must be clarified beforehand. Delivery from Langen warehouse. Orders are subject to change and are checked by the management. The date of receipt of the orders is decisive in the case of multiple sales. Only the first order is valid! Delivery only after clarification of payment! Furthermore, our terms and conditions apply. You can find our terms and conditions on our website or on our order confirmations.
