29.890,- Euro
Machine valution, machine purchase, machine sale of woodworking machines

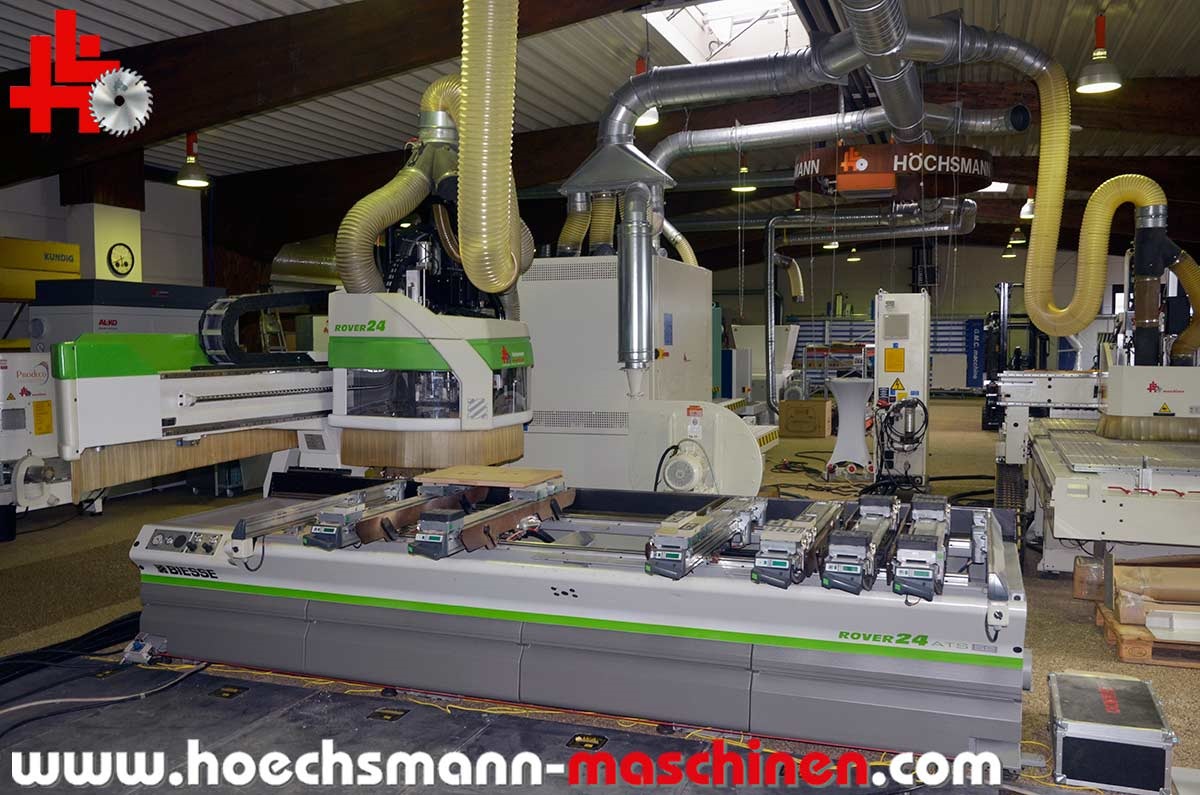

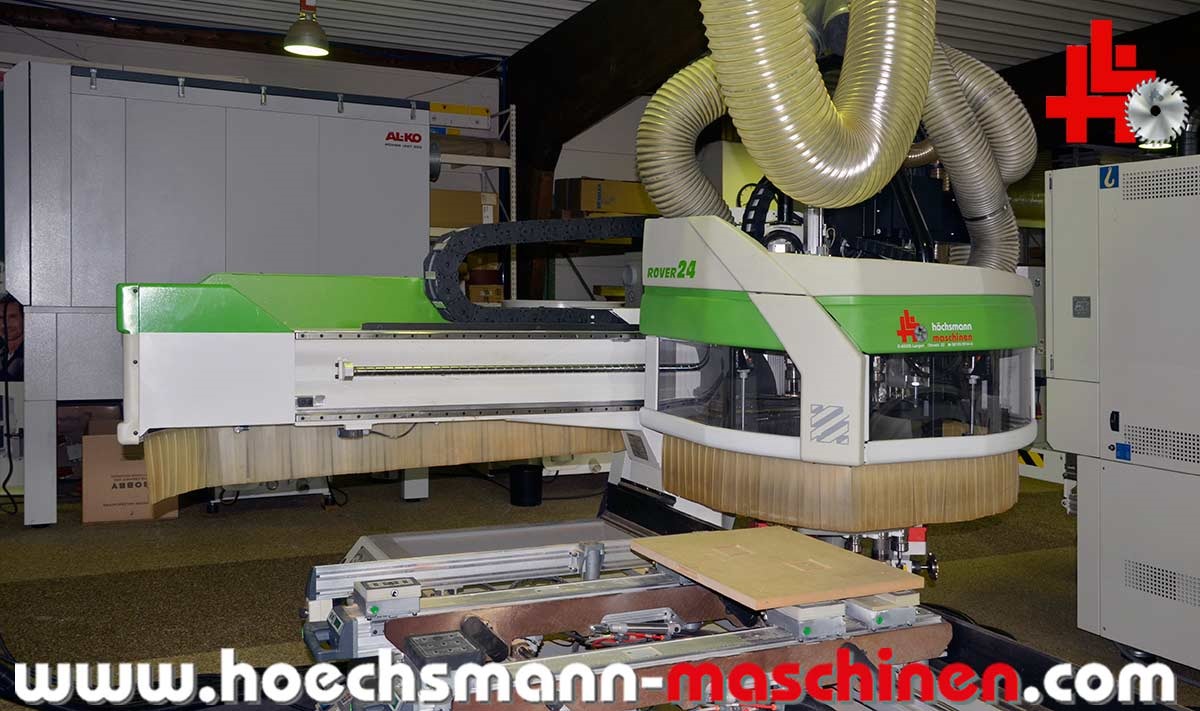

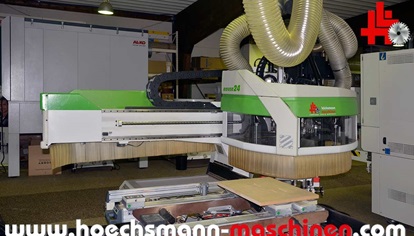

BIESSE Rover 24 ATS machining center, built in 2006, CE sign,
PC control with Windows operating system
- 11 kW HF milling spindle HSK 63 with 8 + 18-position tool changer for tools and angle gearboxes

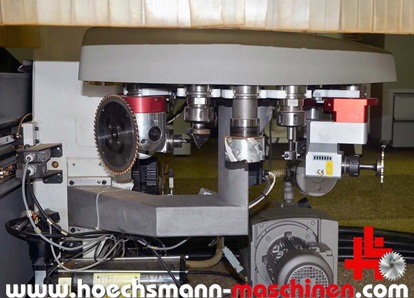

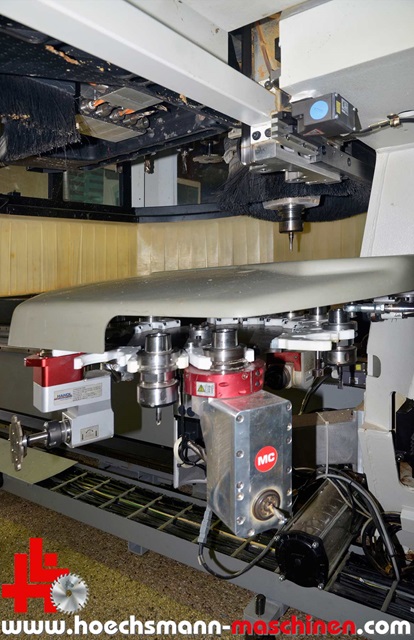

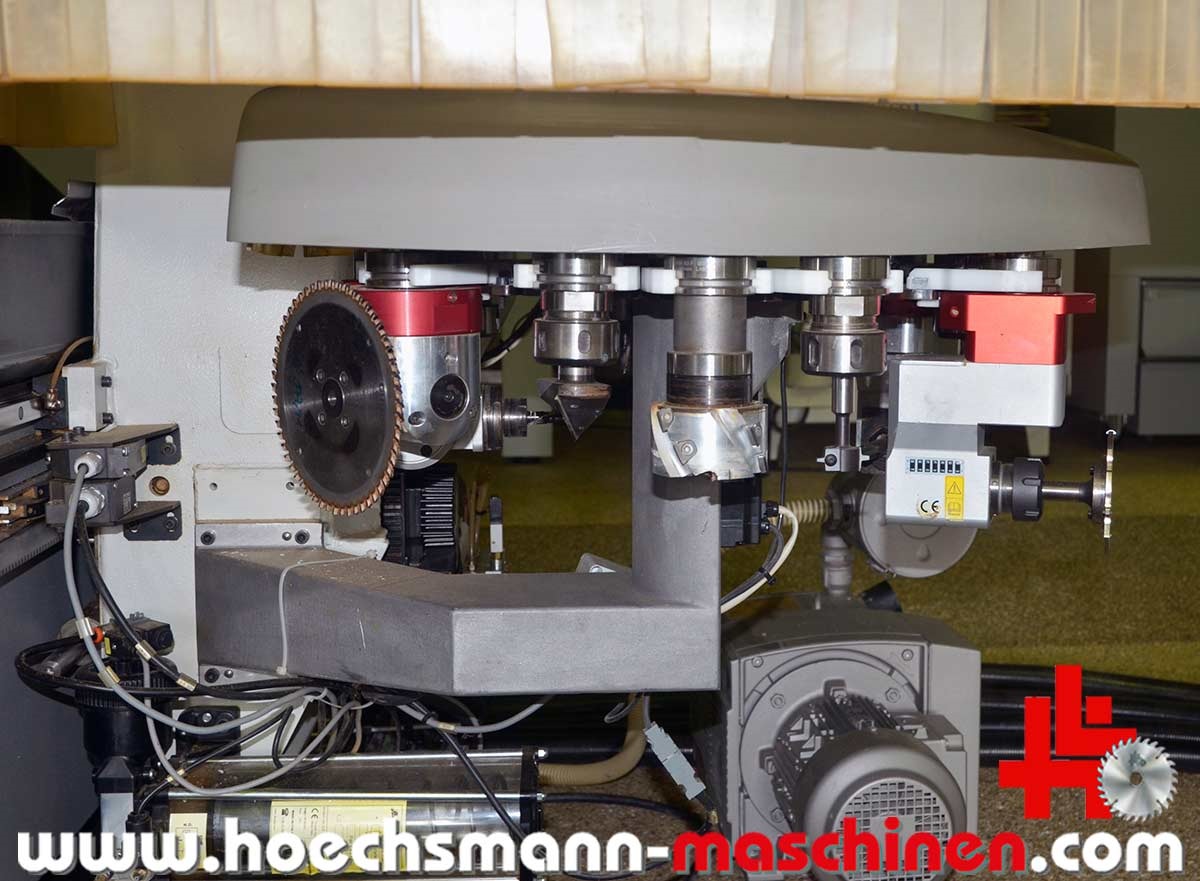

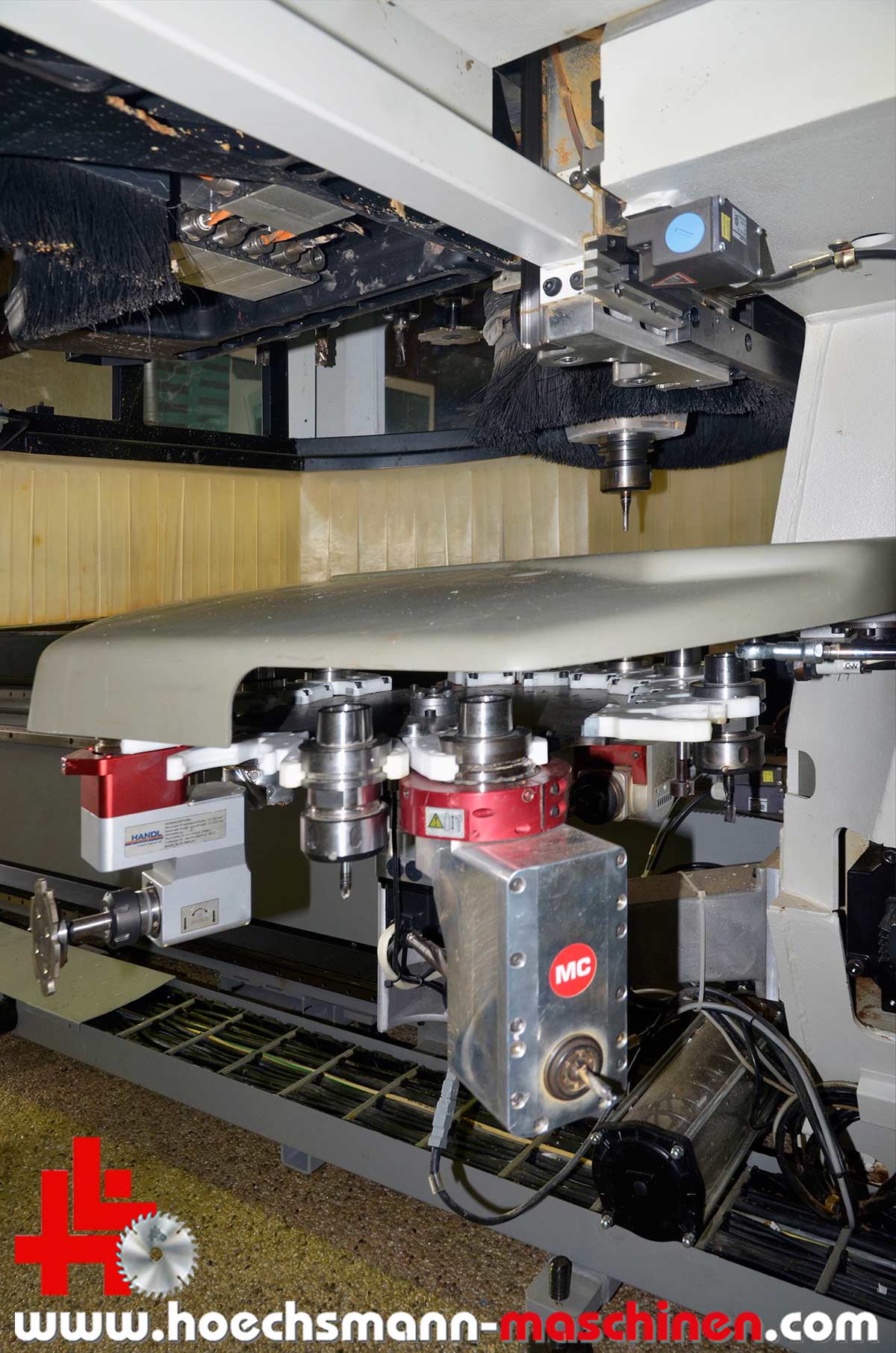

- 4 angle gearboxes
- Working area: max. approx. 3,060 mm (X-axis) x 1,300 mm (Y-axis) x 150 mm (Z-axis)
- Tubeless vacuum consoles - Workpiece clamping system, Type ATS-6
- Consisting of 6 tubeless consoles, each with 3 suction cups (rotatable 360°)
- All 6 consoles/crossbeams can be positioned via digital displays
- 2 independent work areas with foot mats - safety system

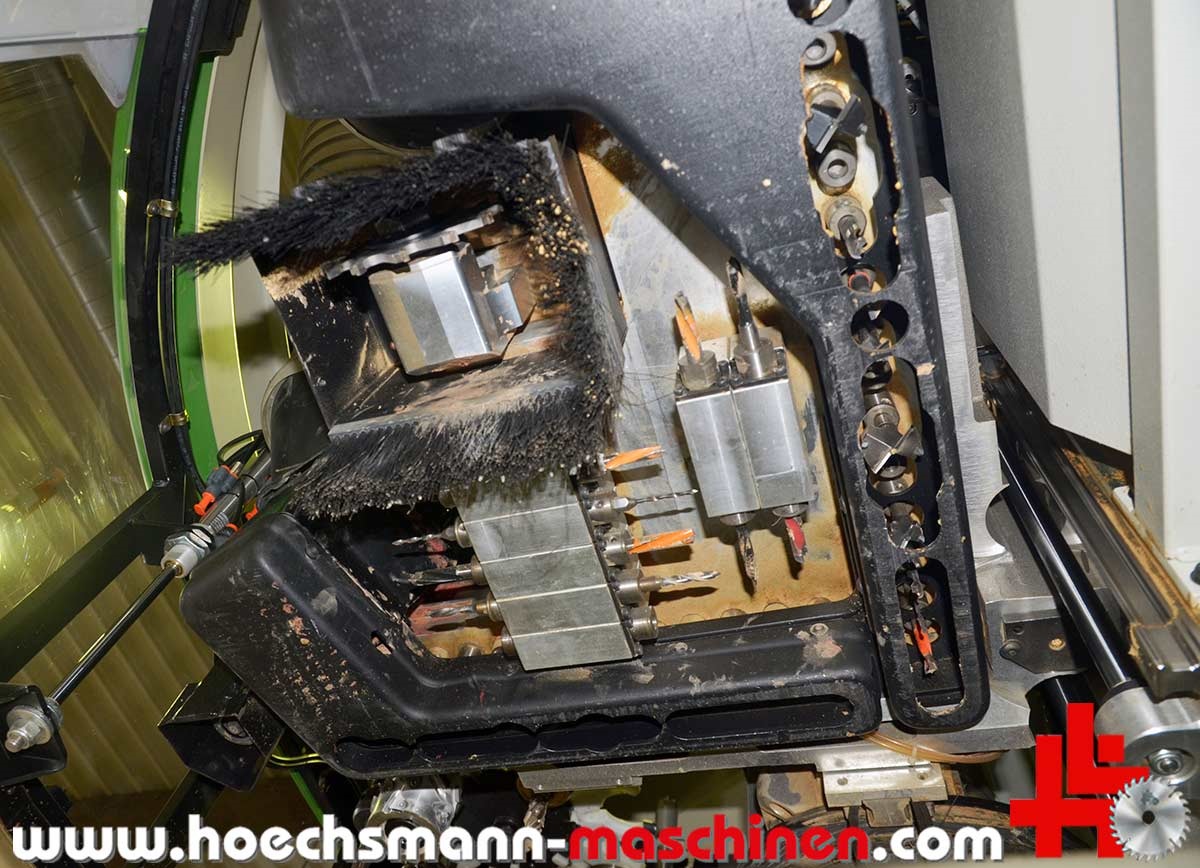

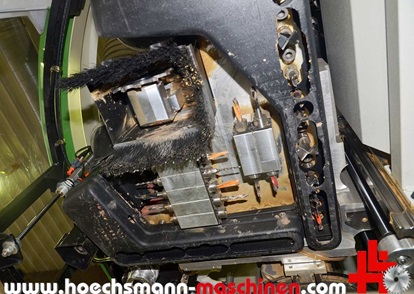

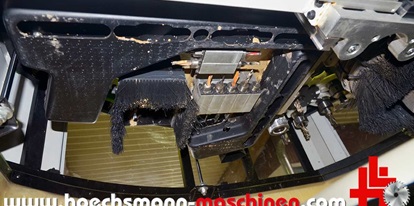

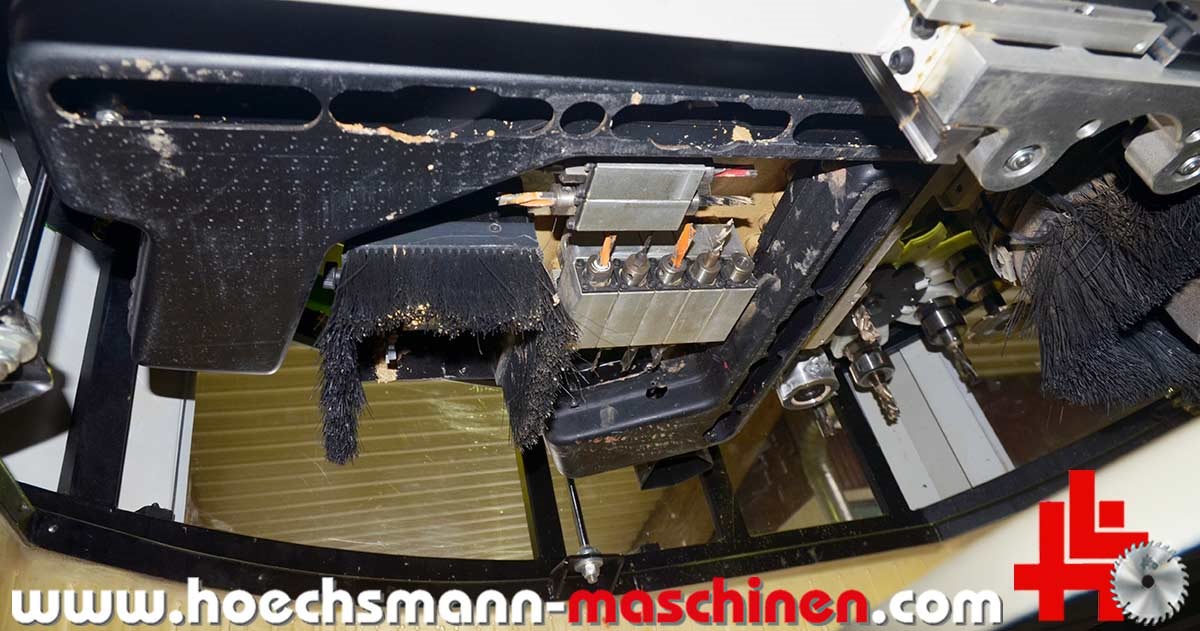

- XL drilling head with 43 spindles

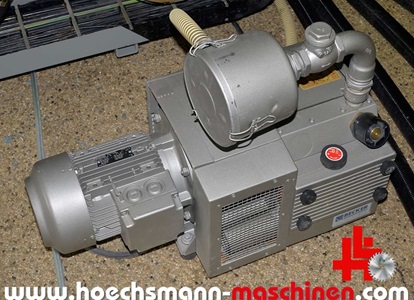

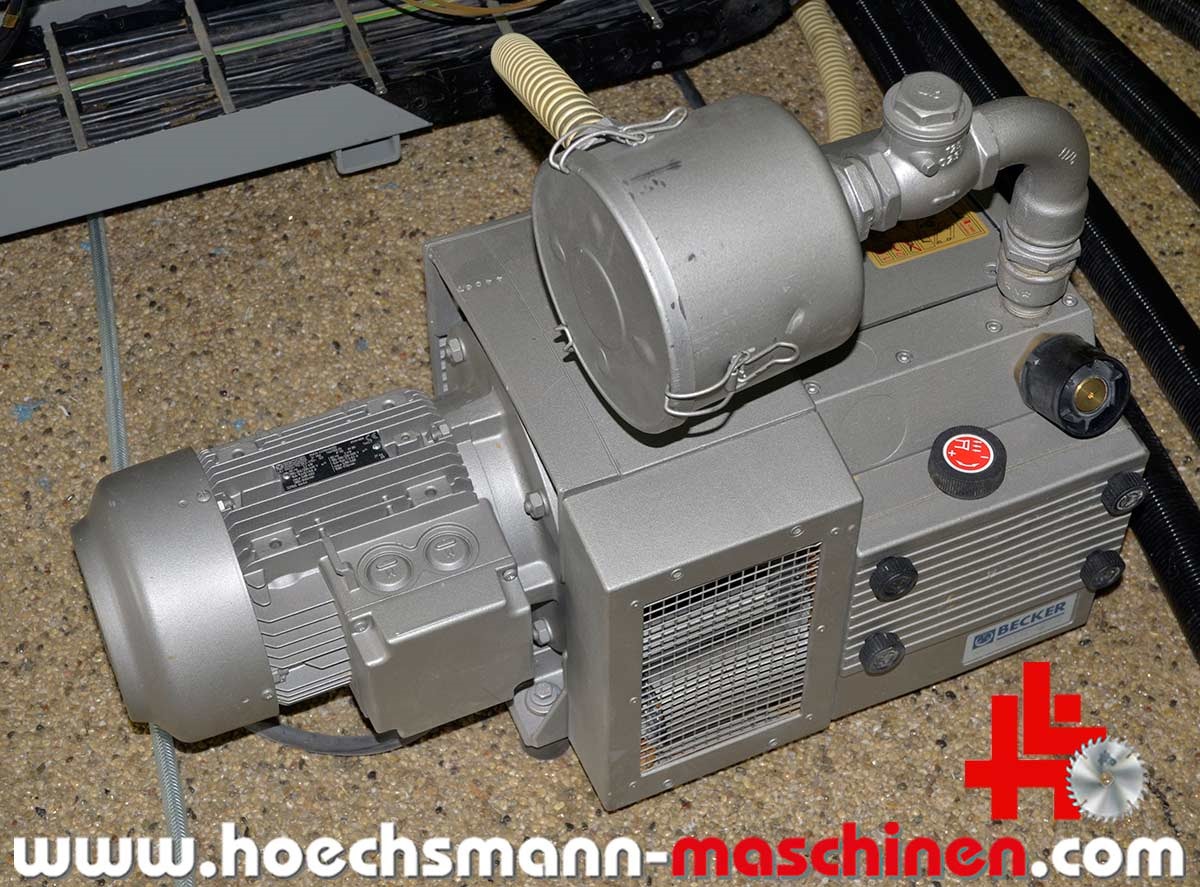

- Swiveling slot saw unit, Ø = 120 mm - High-performance vacuum pump with a capacity of 90 m³/h
- 29 independent vertical drilling spindles (12 distributed along the X-axis and 17 along the Y-axis)
- 14 independent horizontal drilling spindles (10 distributed along the X-axis and 4 along the Y-axis)
- 1 circular saw with a maximum blade diameter of 270 mm (angle gear)
- 1 lockbox unit, rotatable 360° (bevel gear—optional)
- Automatic centralized lubrication via the control system

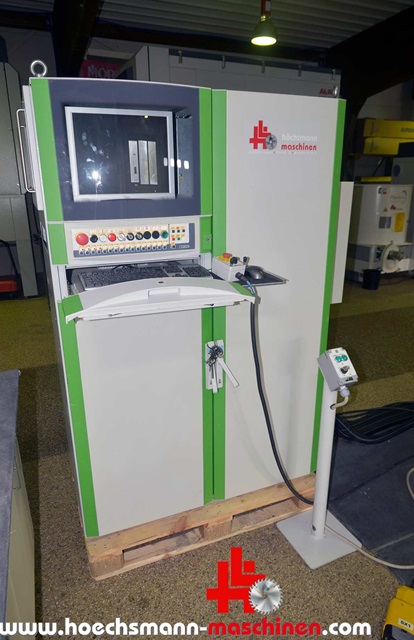

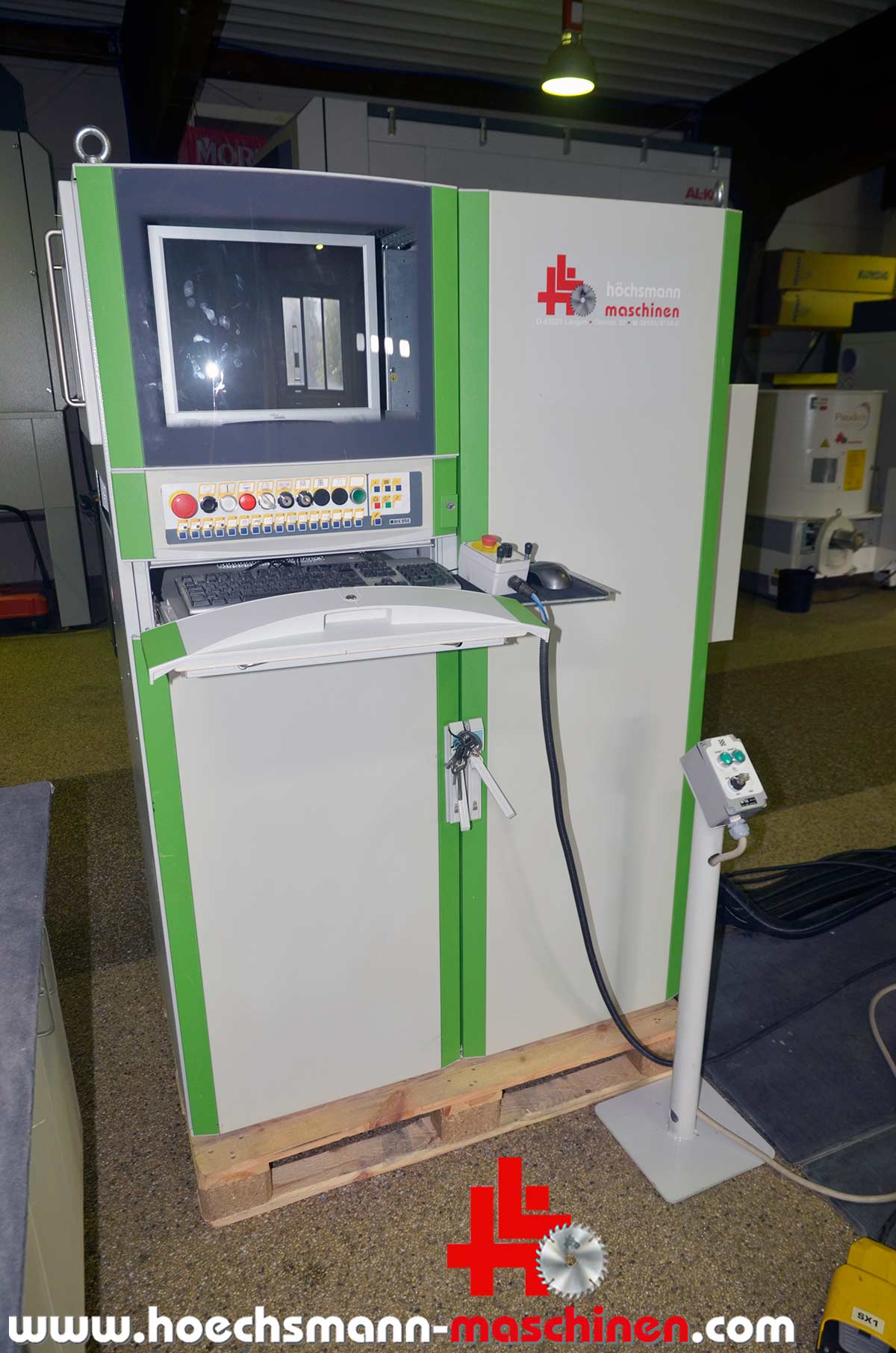

- NC HOPS 4.0 CONTROL SYSTEM on a Windows PC

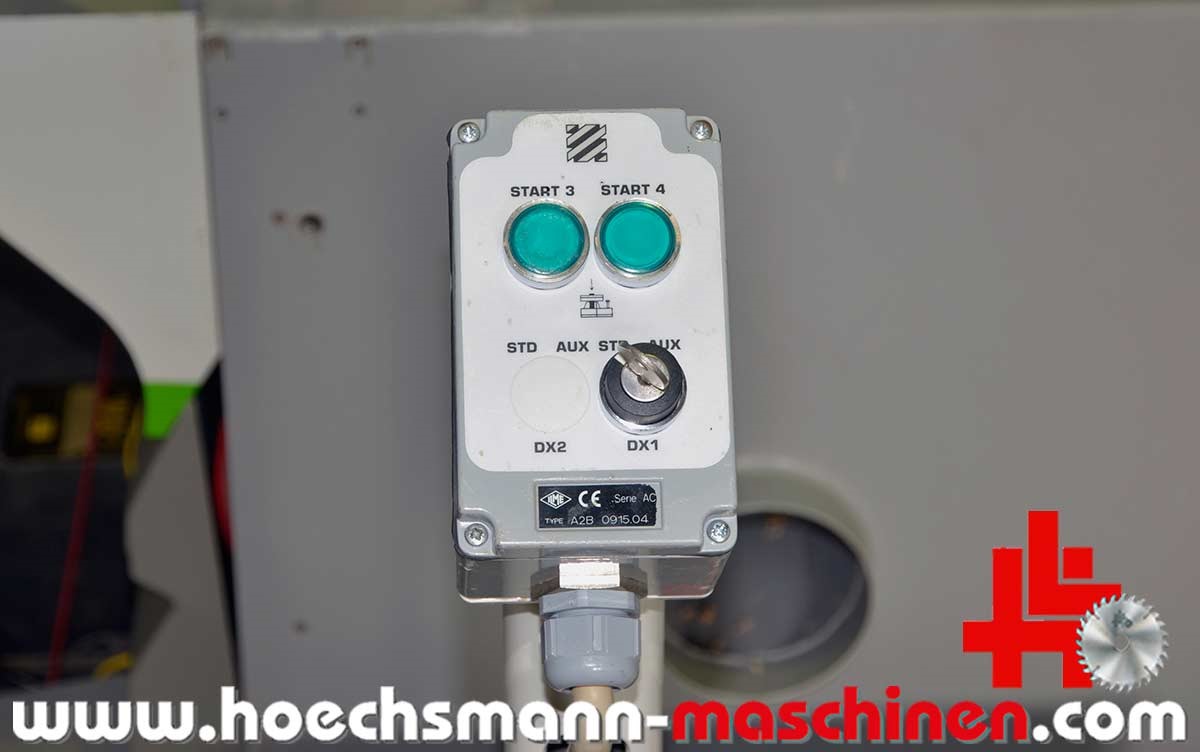

- Remote control
- Foot mat safety system
- Pneumatically controlled exhaust hood
Machine overhauled, functionally tested, and ready for demonstration in our showrooms; various accessories and tools included; in excellent condition; delivery from our Langen warehouse plus setup and commissioning
All prices are net plus statutory VAT.
Sales exclusively to commercial customers.
Some of the machines contain accessories that are subject to a surcharge. Reservations only with a deposit. All used and demonstration machines are sold as is, with no warranty.
Only written agreements apply.
Payable immediately before or at the latest upon delivery or by leasing (by arrangement). Delivery difficulties (difficult entry into the building, lack of equipment for unloading, etc.) must be clarified beforehand. Delivery from Langen warehouse. Orders are subject to change and are checked by the management. The date of receipt of the orders is decisive in the case of multiple sales. Only the first order is valid! Delivery only after clarification of payment! Furthermore, our terms and conditions apply. You can find our terms and conditions on our website or on our order confirmations.
