SCM morbidelli 5-axis CNC-workcenter M200 Pro Space

sold

Machine valution, machine purchase, machine sale of woodworking machines

SCM morbidelli M200 Pro Space 5-axis CNC machining center, year 2017, CE sign.

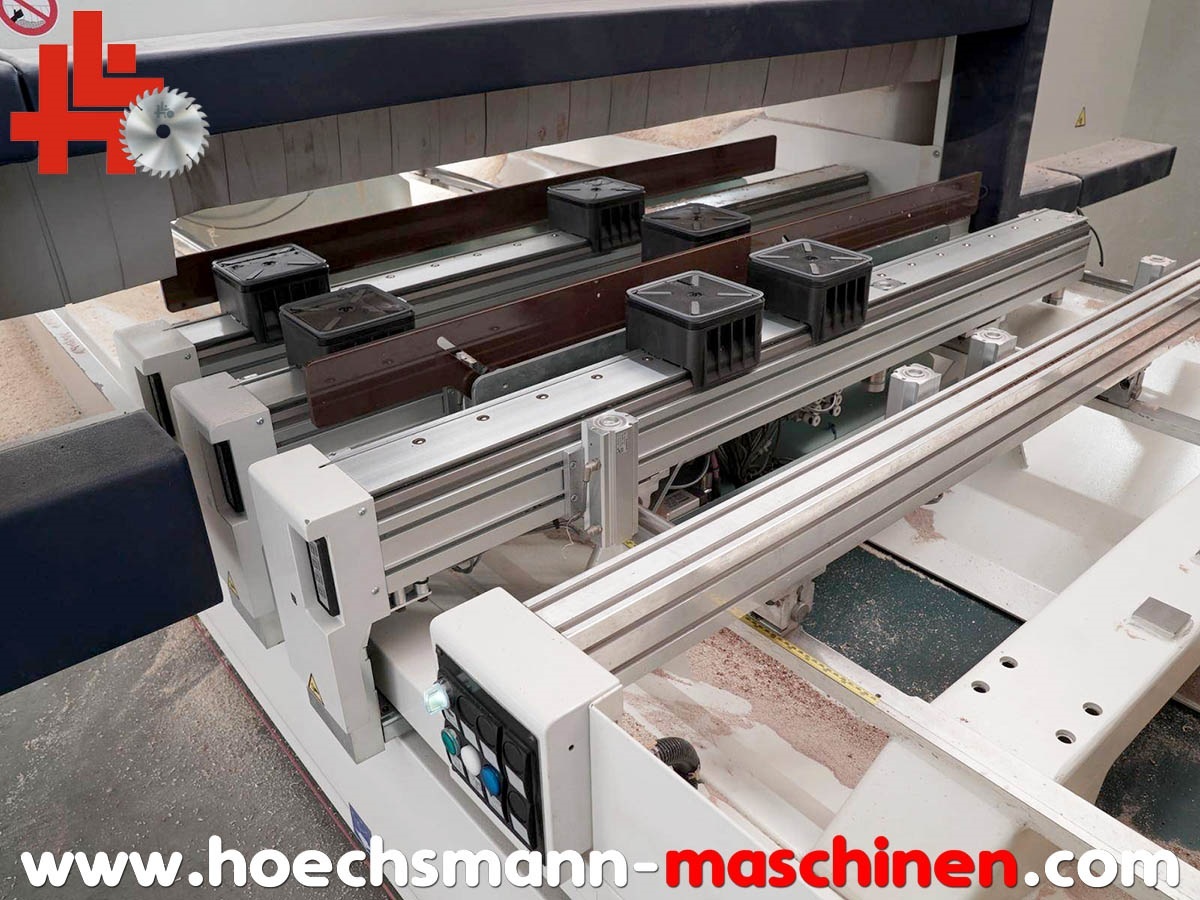

Machining center for wood and composite materials with morbidelli "JQX" 5-axis electrospindle with direct drive, speed max 24,000 rpm, console table with 6 crossbars, TV FLEXMATIC automatic table positioning, working range X=3,710 mm Y=1,620 mm (workpiece passage 2,200 mm) Z=250 mm, workpiece special clamping system for windows,

ProSpace version: 360 degrees walkable and accessible from all sides as all components as well as the vacuum pump are located inside the machine, without enclosure and therefore placement in smallest space possible, protective enclosure of the working units with bumper system

10 kW milling spindle with HSK-F63 holder, sensor for tool length measurement, automatic 14-fold tool changer TRB14, second tool changer FAST 14 directly in the protective housing (short distance to the electric spindle), F29 LTC drilling unit with 17 drilling spindles vertically, 8 drilling spindles horizontally in X and 4 horizontally in Y, integrated saw blade/grooving saw in X direction, new SCM eye-M Pro control/operator panel with latest software SCM MAESTRO ACTIVE CNC, dxf interface, AV license, SCM TecPad remote control with 7" touch screen, 250 m³/h vacuum pump, chip conveyor belt,
weight approx. 5.250 kg


SCM morbidelli M200 Pro Space 5-axis CNC-workcenter

SCM morbidelli 5-axis CNC-workcenter M200 Pro Space

To avoid trouble, please note the following important information:

All prices are net plus statutory VAT.

Sales exclusively to commercial customers.

Some of the machines contain accessories that are subject to a surcharge. Reservations only with a deposit. All used and demonstration machines are sold as is, with no warranty.

Only written agreements apply.

Payable immediately before or at the latest upon delivery or by leasing (by arrangement). Delivery difficulties (difficult entry into the building, lack of equipment for unloading, etc.) must be clarified beforehand. Delivery from Langen warehouse. Orders are subject to change and are checked by the management. The date of receipt of the orders is decisive in the case of multiple sales. Only the first order is valid! Delivery only after clarification of payment! Furthermore, our terms and conditions apply. You can find our terms and conditions on our website or on our order confirmations.
