Machine valution, machine purchase, machine sale of woodworking machines

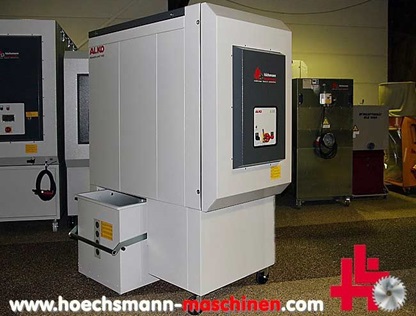

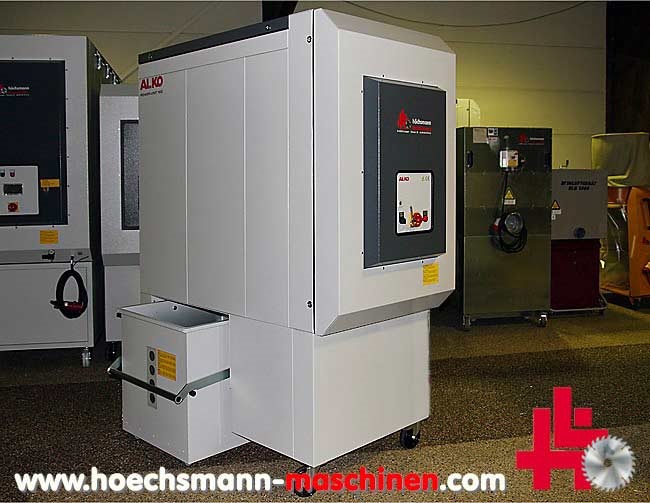

AL-KO PowerUnit APU160 K dust collection system with compressor, new machine, CE sign, suitable for wood and wood composites, paper, plastics, metal, stone, and much more, Integrated pre-separator to protect the filters, PLC control for manual start and automatic start via potential-free contact, optionally with machine detection via potential-free contact or transformer coil and slide valve control (for 24V electro-pneumatic systems) with bypass control,
Suction inlet 160 mm, 2.2 kW 400 V motor, max. airflow 2,000 m³/h, Airflow at the inlet at 20 m/s: 1,448 m³/h, negative pressure at the inlet at 20 m/s: 2,503 Pa / dusted and cleaned, filter area 9.1 m², 23 filters, each Ø 125 mm x 1,000 mm, filter material: polyester needle felt, Cat. M – electrically conductive – washable, residual dust content H3 (< 0.1 mg/m³), AL-KO OPTI JET® with compressed air – generated by integrated compressor, filter cleaning, max. sound pressure level 70 dB (A) (free-field measurement according to DIN EN ISO 11201 measured at a distance of 1 m), chip collection volume net/gross 165 / 241 liters, PLC control Micro-PLC-LOGO Siemens, 5 m cable with CEE plug 16A with phase inverter, airflow monitoring via differential pressure sensor with warning light on the control box, dimensions (L x W x H) 1,718 x 830 x 2,050 mm, mobile on 4 plastic casters 125 mm—two of which are swivel casters, one with a lock, weight 350 kg, operating side can be changed to right or left at any time,
Optional accessories:
- Chip bags
- External control cabinet
- Machine detection with 24V slide valve control for 4, 8, 12, etc. machines
- Frequency converter with pressure regulator for demand-based control of the system
- Expansion chamber extension for material stabilization or to increase the filter area
- Level monitoring via ultrasonic sensor, suitable for ATEX Zone 21
- Sliding damper
- Exhaust hood
- PUR spiral hose
All prices are net plus statutory VAT.
Sales exclusively to commercial customers.
Some of the machines contain accessories that are subject to a surcharge. Reservations only with a deposit. All used and demonstration machines are sold as is, with no warranty.
Only written agreements apply.
Payable immediately before or at the latest upon delivery or by leasing (by arrangement). Delivery difficulties (difficult entry into the building, lack of equipment for unloading, etc.) must be clarified beforehand. Delivery from Langen warehouse. Orders are subject to change and are checked by the management. The date of receipt of the orders is decisive in the case of multiple sales. Only the first order is valid! Delivery only after clarification of payment! Furthermore, our terms and conditions apply. You can find our terms and conditions on our website or on our order confirmations.
