Kantenanleimmaschine SCM Olimpic K560 T-ER2

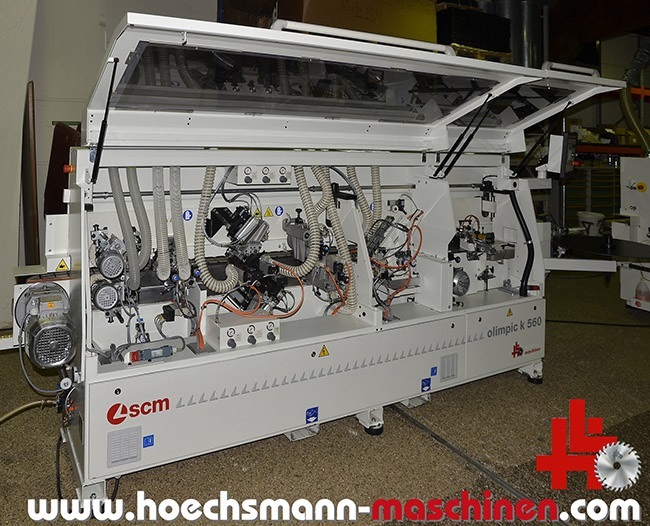

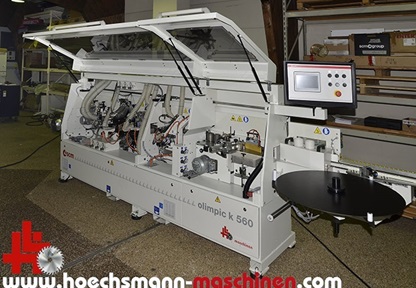

SCM edge banding machine Olimpic K 560 T-ER2

Machine valution, machine purchase, machine sale of woodworking machines

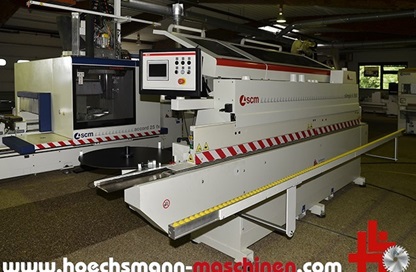

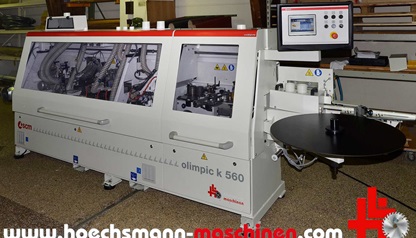

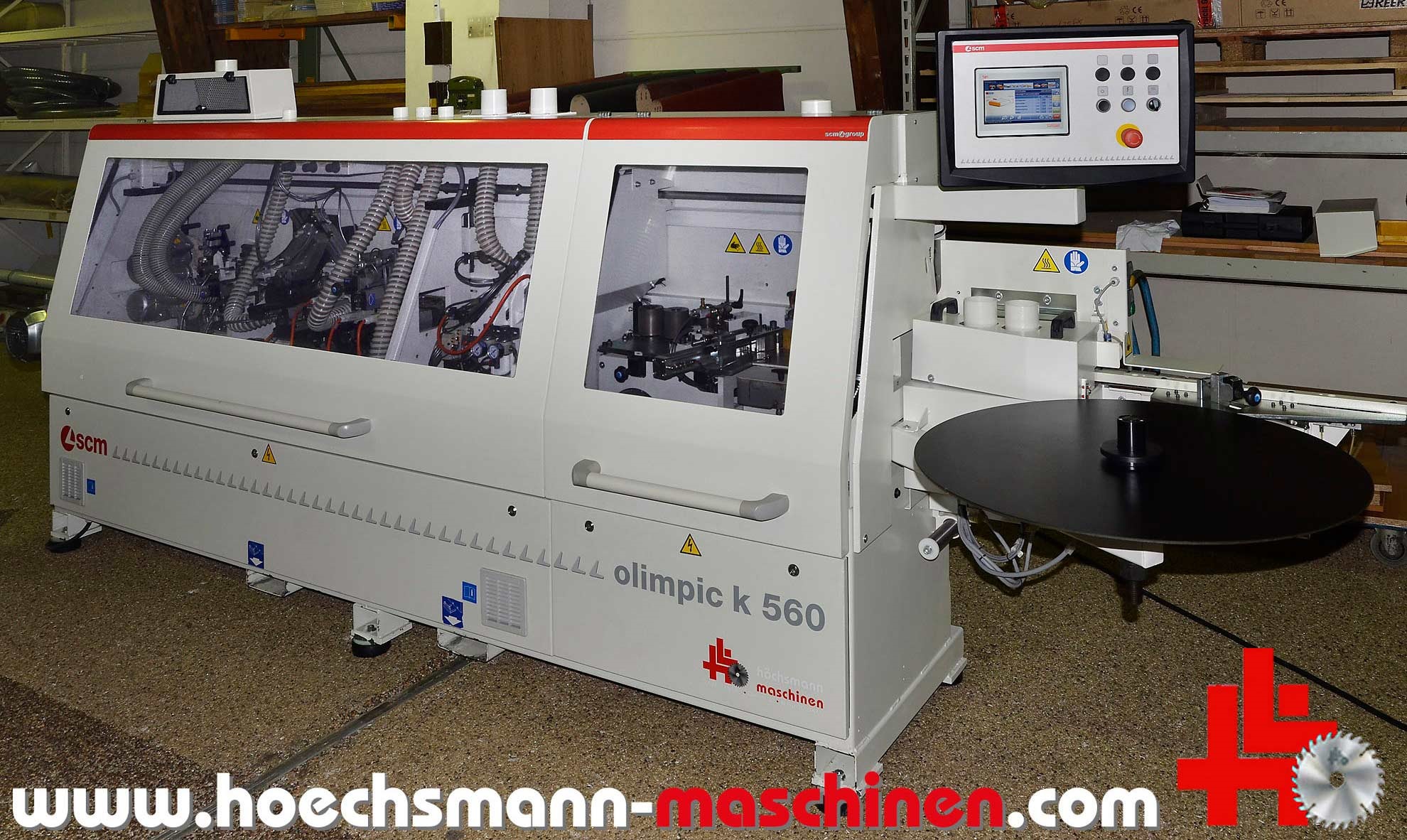

SCM SCM  edge banding machine, type Olimpic K 560 T-ER2, built in 2014, CE mark,
Touch 7 Control - PLC pattern control, working height 8 - 60 mm, feed rate 12 - 18 m / min, thickness of strip edge 0,4 - 6 mm, thickness of roll edge 0,4 - 3 mm, Min. Plate length 140 mm with 100 mm min. Width, min. Plate width 95 mm with 210 mm min. Length (by adjusting the aggregates also 60 mm possible),

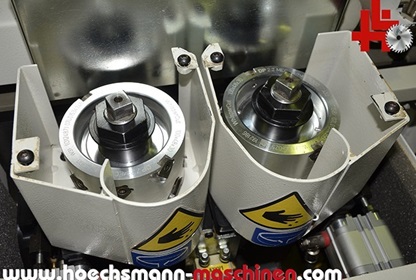

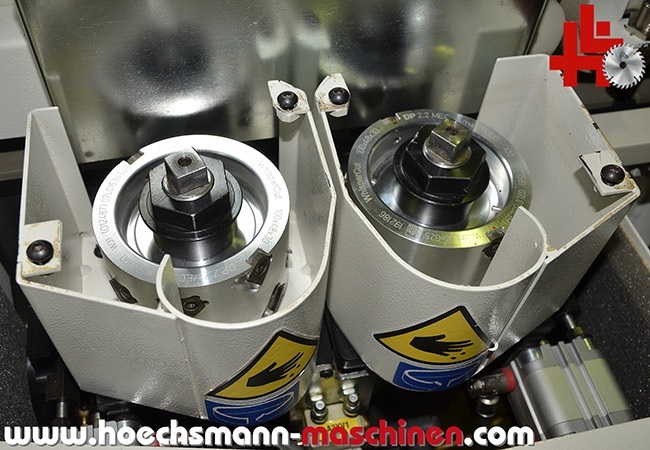

"RT-V" pre-milling / joining unit with 2 high-frequency spindles and Diamond milling cutters as well as digitally adjustable infeed ruler,
Glueing unit "VC-MX" with Teflon-coated glue container and digital glue temperature control,
end cutting unit "K / SEL" with 2 high-frequency motors with caps or chamfers,
radius trimming unit "R-K" with 2 high-frequency motors and "Combi" tool R = 2 mm,
rounding unit "ROUND X" for rounding and trimming with 2 high-frequency motors - independently selectable,
edge scraping unit "RAS / K" with tracer rollers, R = 2 with numerical display of the settings,
Surface scraping unit "RC-V" with tracer rollers and self-adjusting indexable insert tools and blowing nozzles and suction hood for cleaning,
Brushing unit "SP-V" with 2 independent motors,
"AUTOSET" quick change kit for simplified adjustment work when changing from 1st to 2nd cycle and edge change by pneumatically controlled aggregates,
"Suction system" kit with additional suction hoods for end cutting unit and scraper unit,

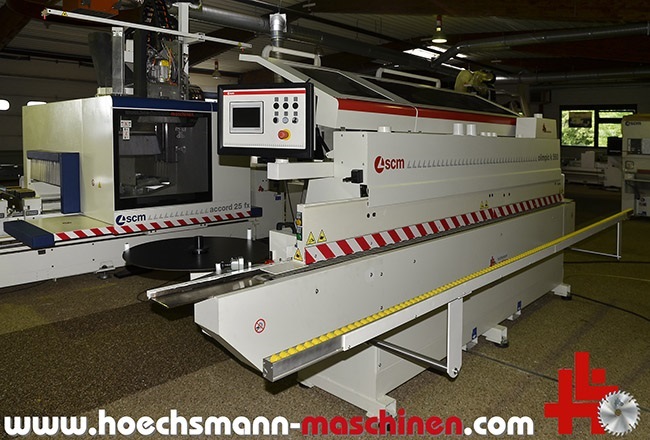

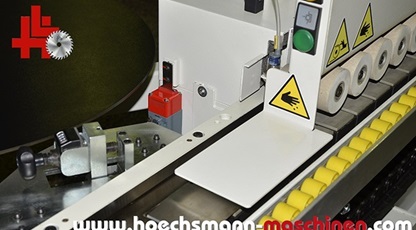

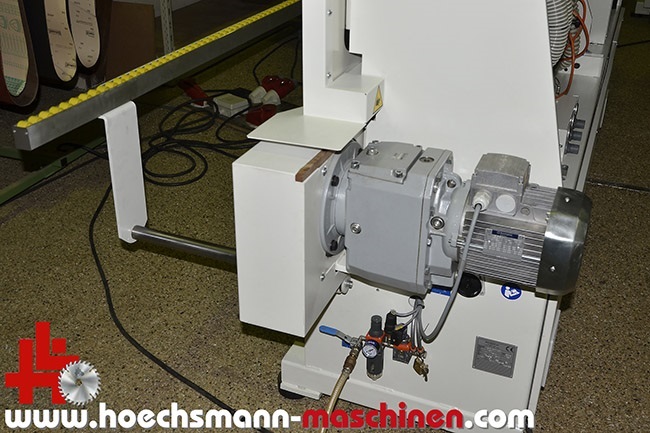

Plate feed on rubber guideways by feed chain which slides on 2 hardened steel guides, upper pressure bar with pressure rollers in double row, central adjustment of the top pressure, all high frequency motors operated by frequency converter, noise protection hood, underfloor glue pot, glue application via roller dosing system, extendable roller bearing track with special support against tilting (from any position slightly with one hand extendable), very good condition

The K560 T-ER2 offers you:

- Very high plate quality thanks to the rounding unit with 2 motors for simultaneous rounding and trimming of the corners

- High productivity with a feed rate of 12-18 m / min and with 600 mm spacing between successive plates even when rounding

- Fast changing between thin, thick and solid wood edges with the trimming unit working in 3 positions with a "Combi" tool and pneumatic postioning

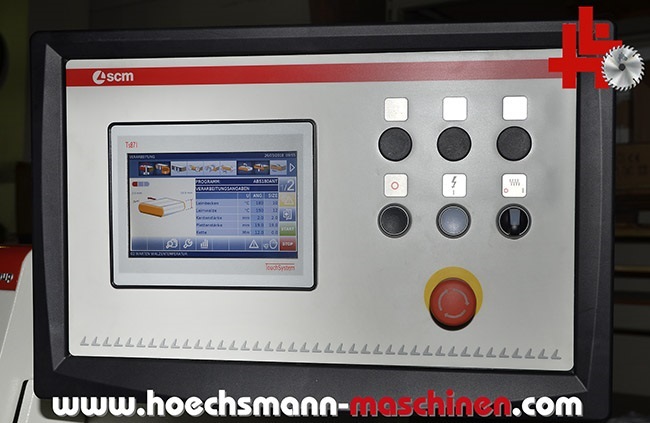

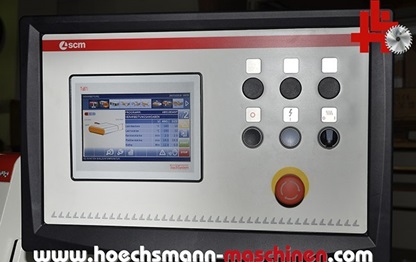

 - "Touch 7" control with touch screen colour screen, which offers a faultless aggregate selection and optimal information display

SCM Kantenanleimmaschine Olimpic K560 T-ER2

SCM Olimpic K560 T-ER2 Kantenanleimm.
