ATEMAG Angular gear Winkelgetriebe SCM CNC

Machine valution, machine purchase, machine sale of woodworking machines

4.290,- Euro

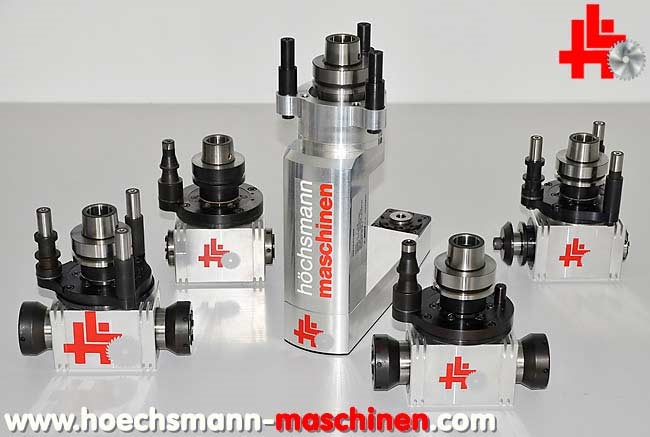

ATEMAG CNC right angle gearbox, type Function Line Mono Low Level drilling unit HSK 63 F, robust right angle gearbox for use on SCM CNC machining centers for C-axes and other machining centers with HSK mount, special solution for horizontal drilling and nesting, 1 output with one drill mount M8, unit can be swivelled 360° around drive axis, max. speed (drive) 6.800 rpm, max. speed (spindle) 6.000 rpm, gear ratio 1:0,88, max. torque spindle output = 1 Nm, HSK 63 F connection, pin version for Biesse machines, list price ~ 4.400 Euro, new exhibit with measuring protocol



ATEMAG SCM CNC Winkelgetriebe, angular gear

ATEMAG SCM CNC Winkelgetriebe

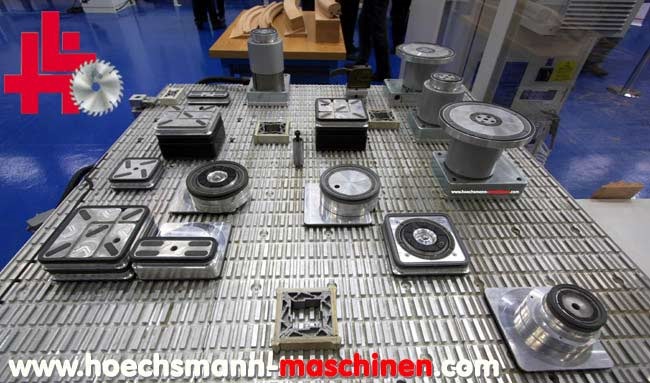

Other CNC accessories, spare parts and aggregates in stock ...

To avoid trouble, please note the following important information:

All prices are net plus statutory VAT.

Sales exclusively to commercial customers.

Some of the machines contain accessories that are subject to a surcharge. Reservations only with a deposit. All used and demonstration machines are sold as is, with no warranty.

Only written agreements apply.

Payable immediately before or at the latest upon delivery or by leasing (by arrangement). Delivery difficulties (difficult entry into the building, lack of equipment for unloading, etc.) must be clarified beforehand. Delivery from Langen warehouse. Orders are subject to change and are checked by the management. The date of receipt of the orders is decisive in the case of multiple sales. Only the first order is valid! Delivery only after clarification of payment! Furthermore, our terms and conditions apply. You can find our terms and conditions on our website or on our order confirmations.
