Columbus Vakuumpresse Multimat

7.490,- Euro
​depending on equipment, accessories, and services

Columbus Multimat Vacuum Press

Machine valution, machine purchase, machine sale of woodworking machines

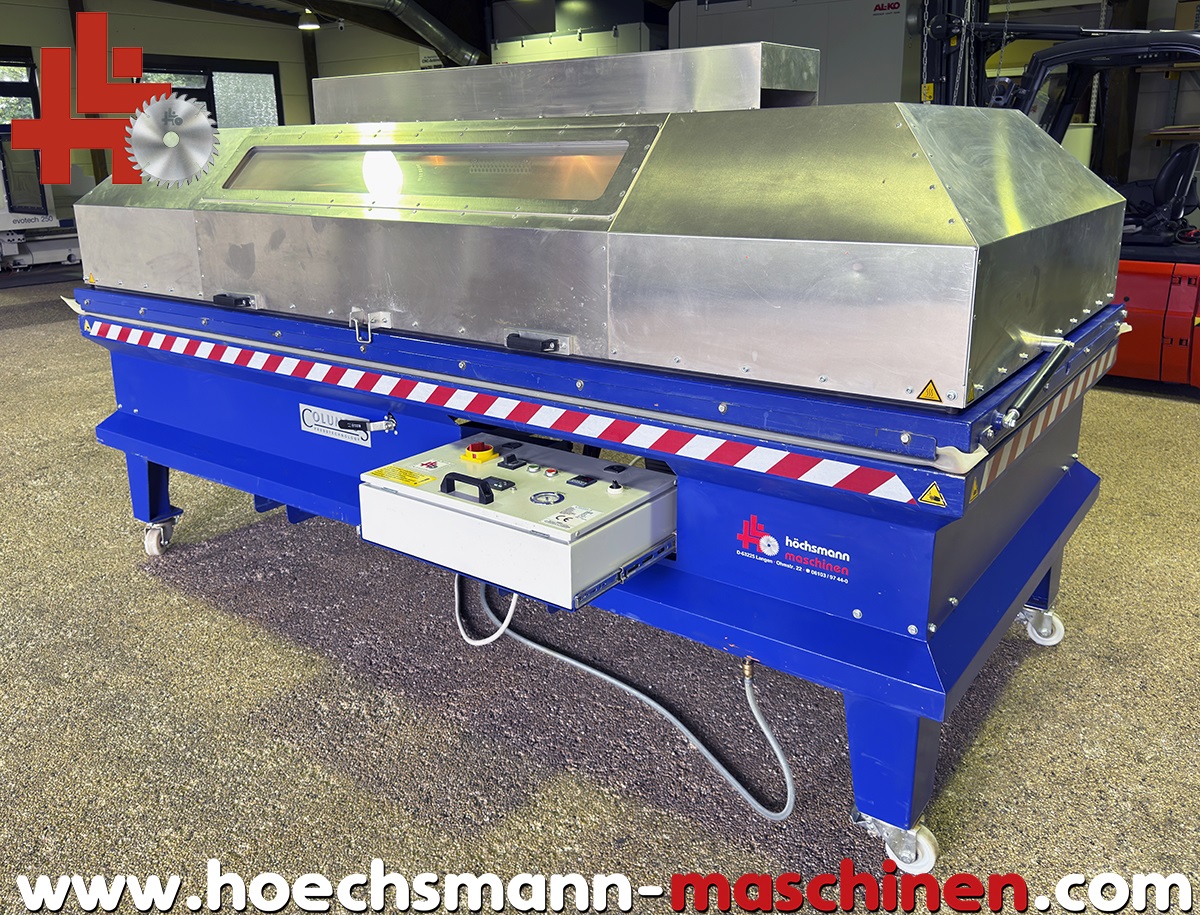

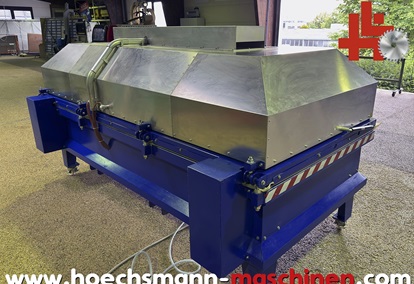

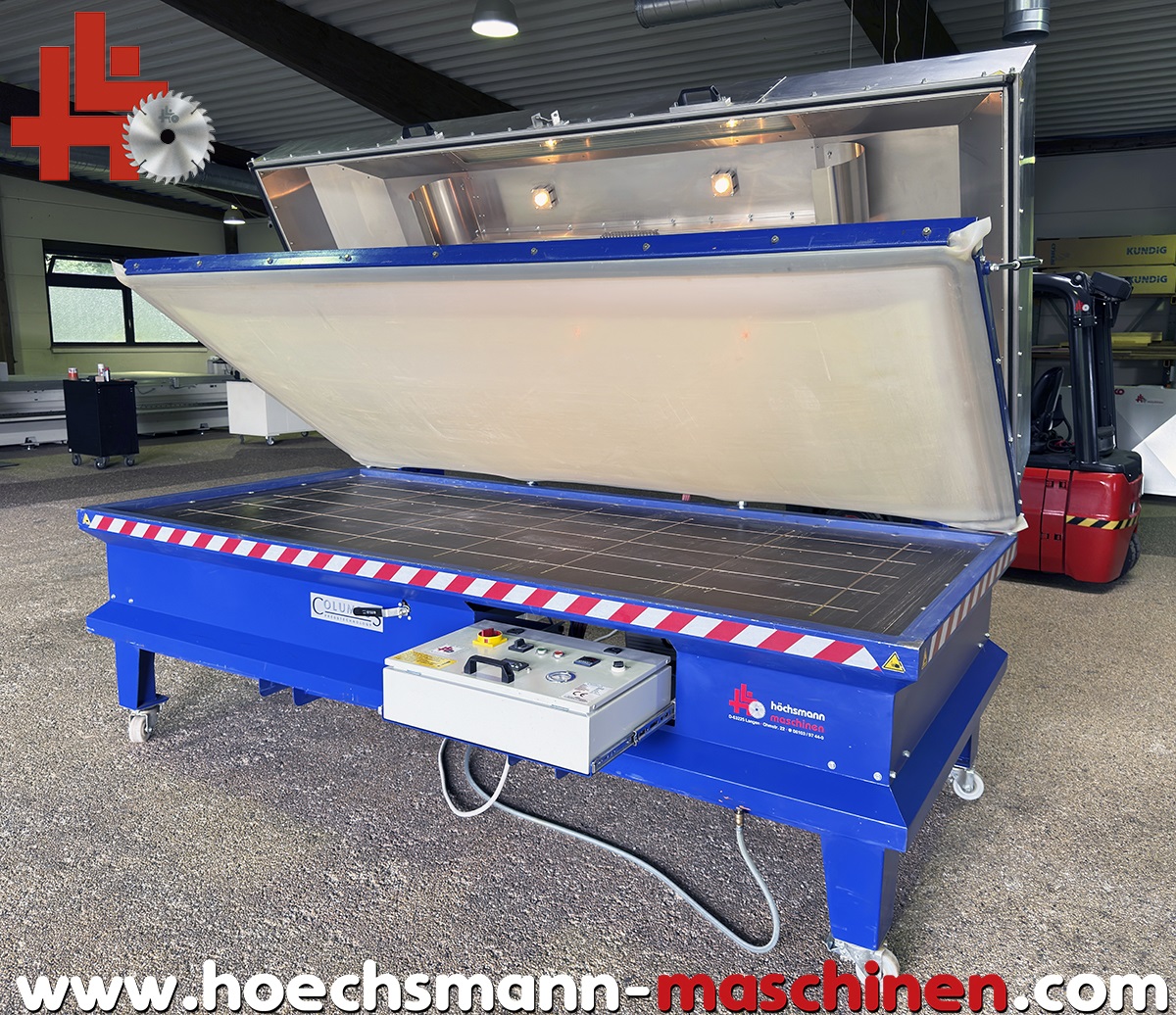

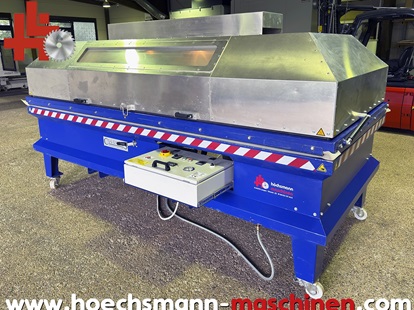

Columbus Multimat Vacuum Press, built in 2012, CE sign,

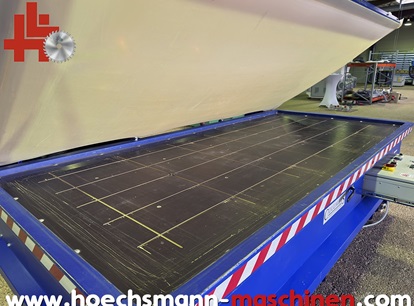

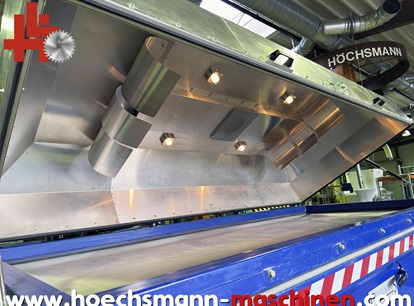

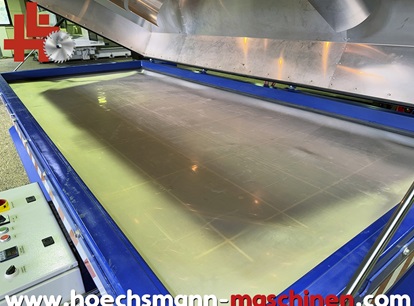

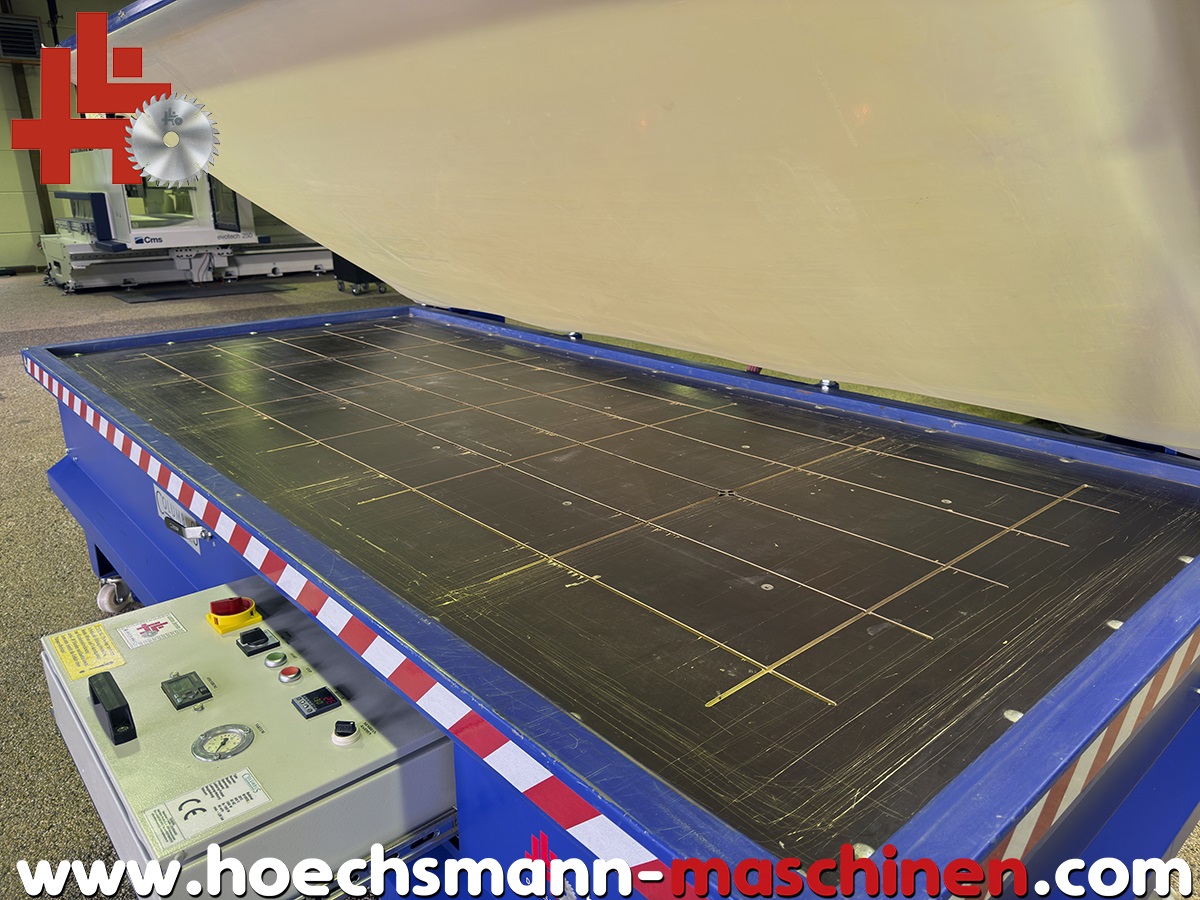

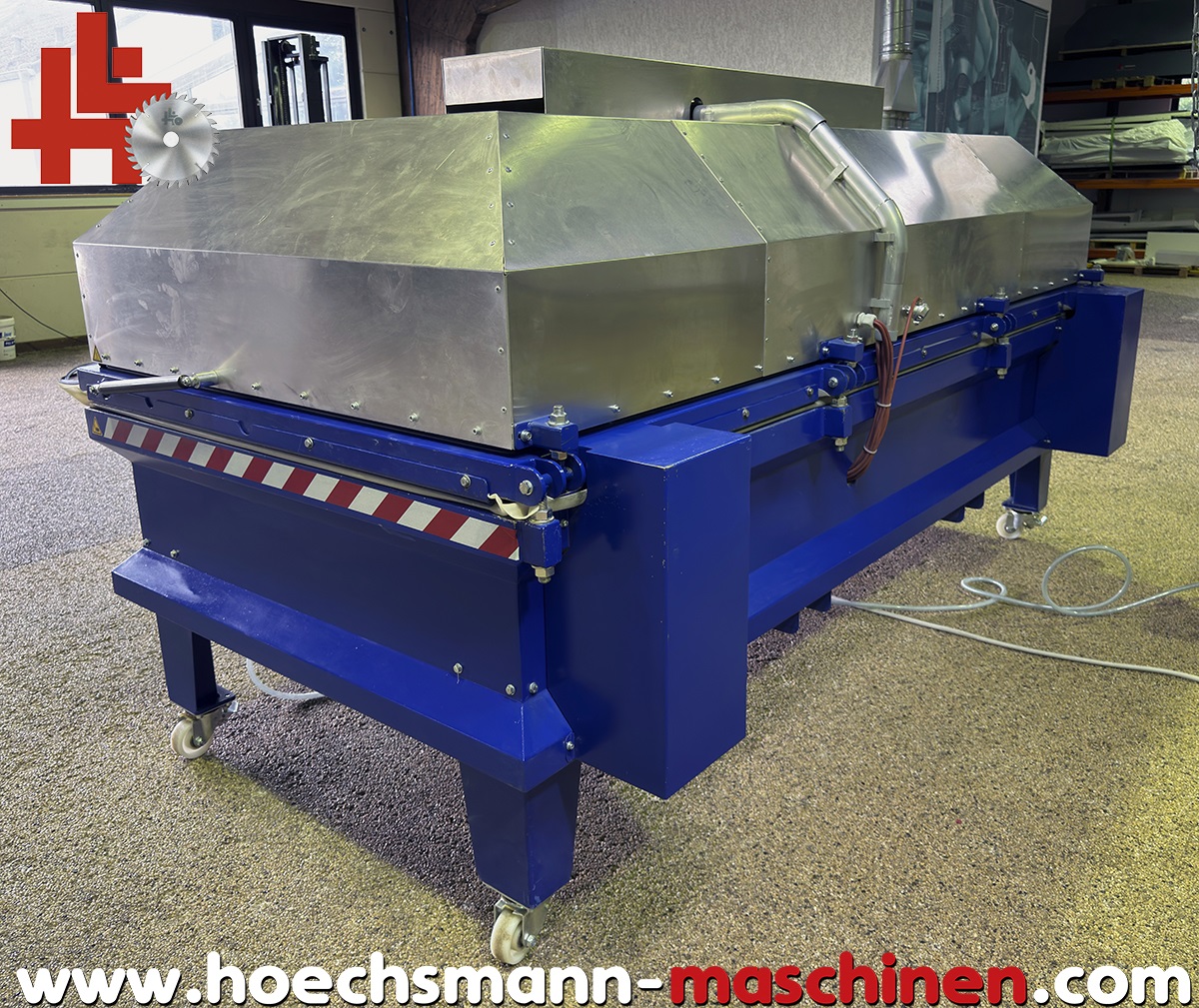

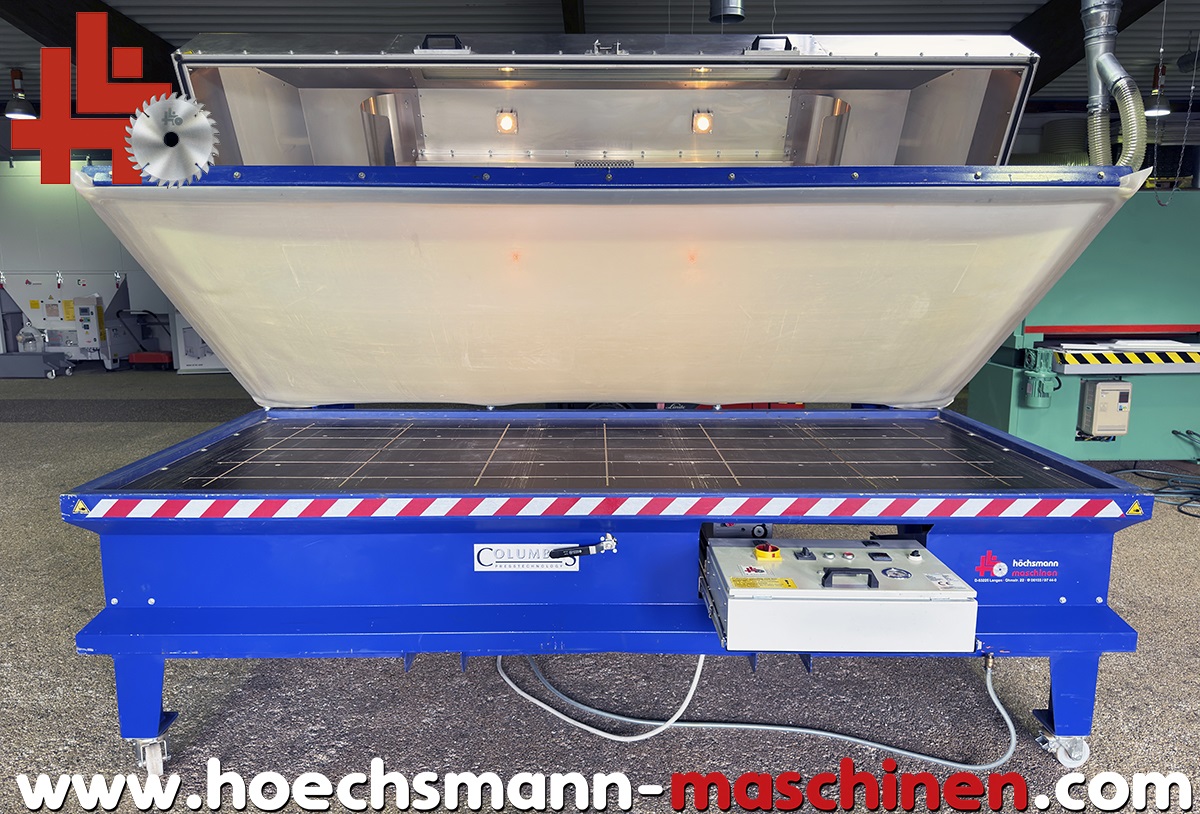

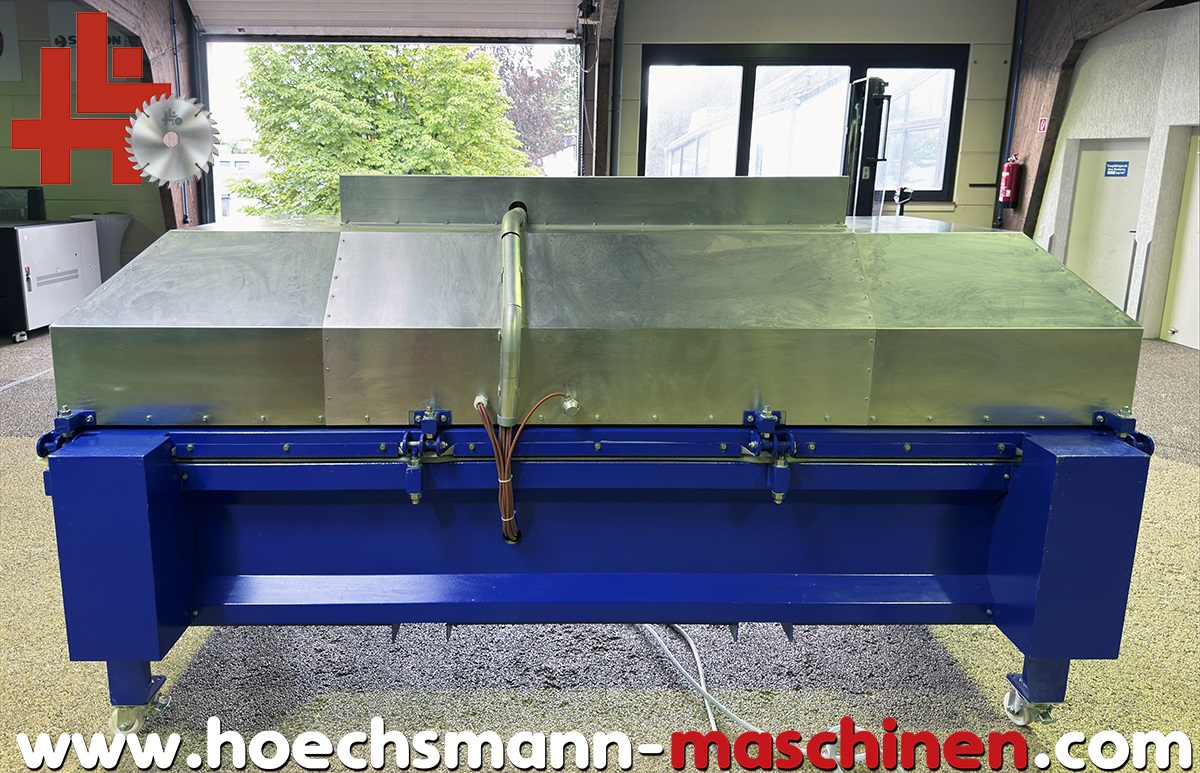

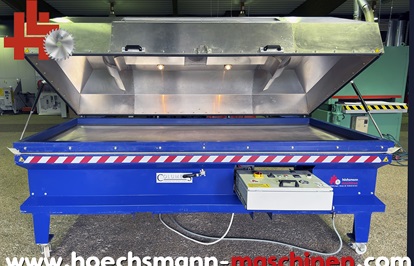

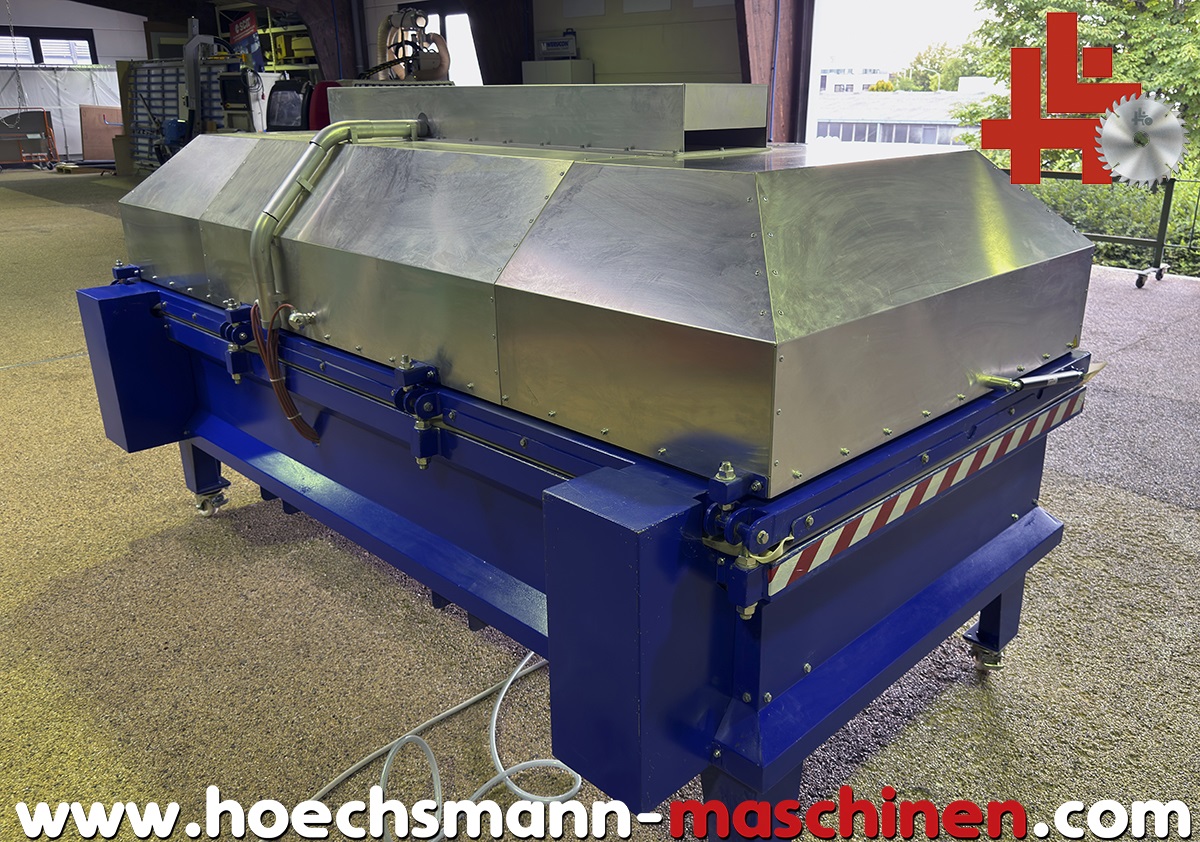

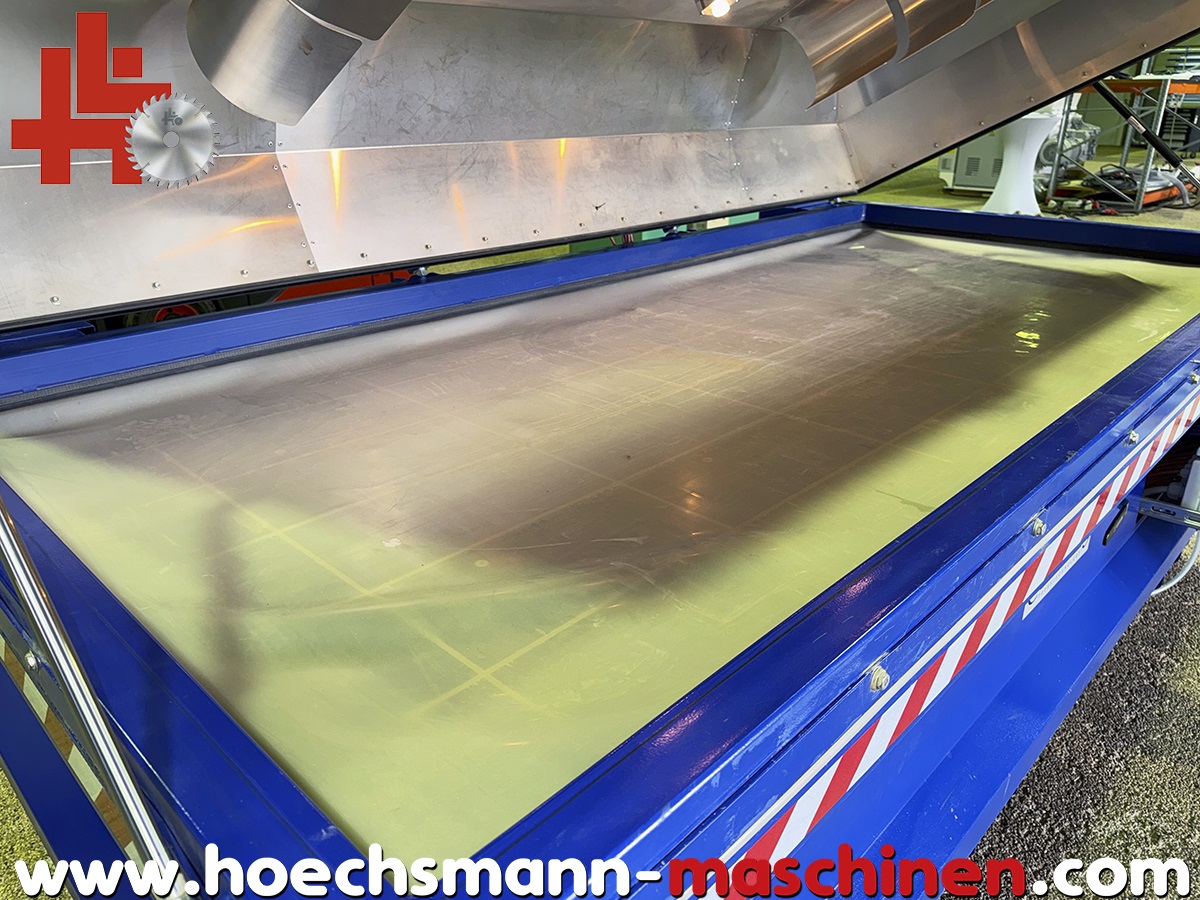

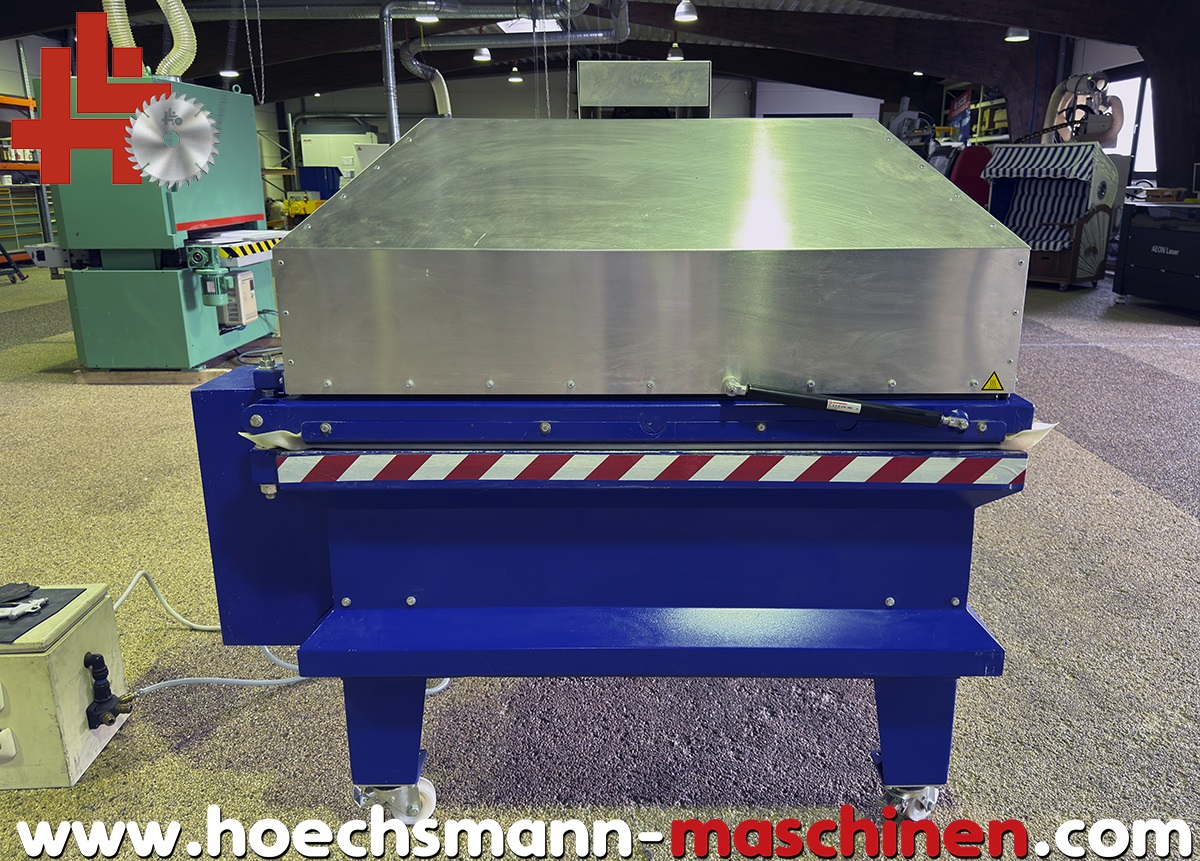

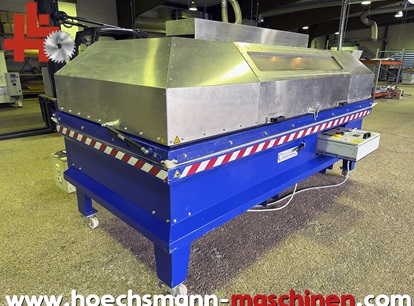

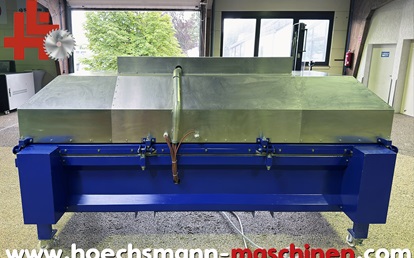

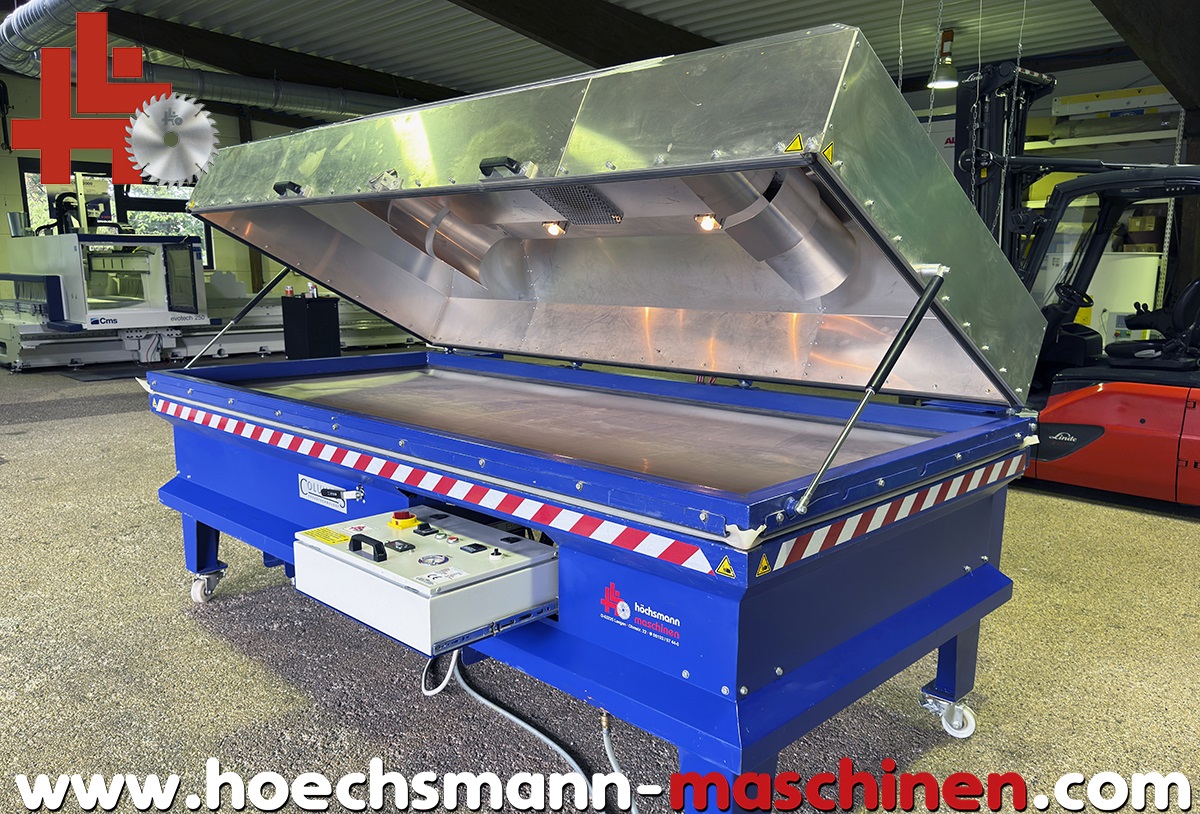

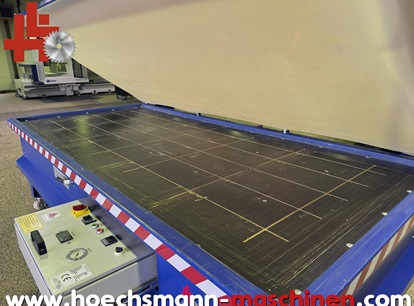

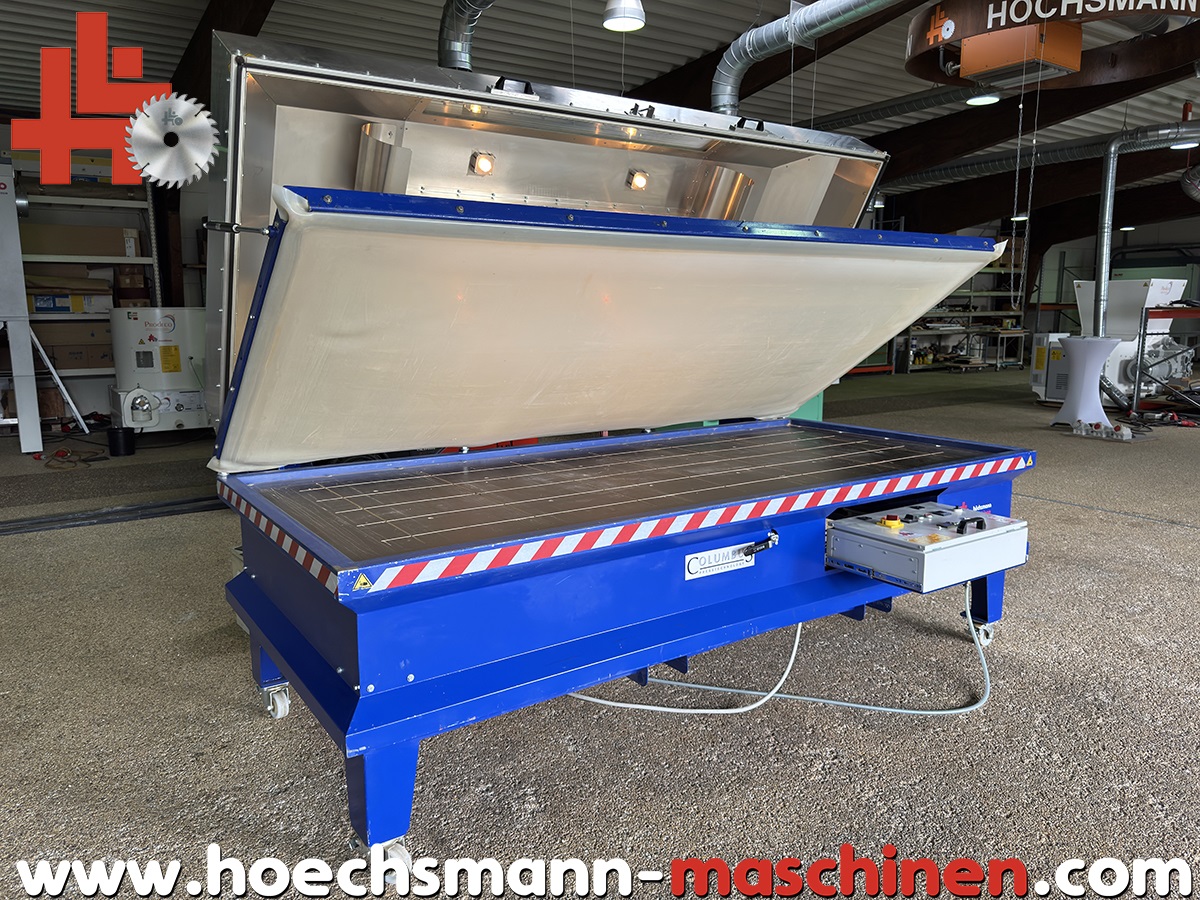

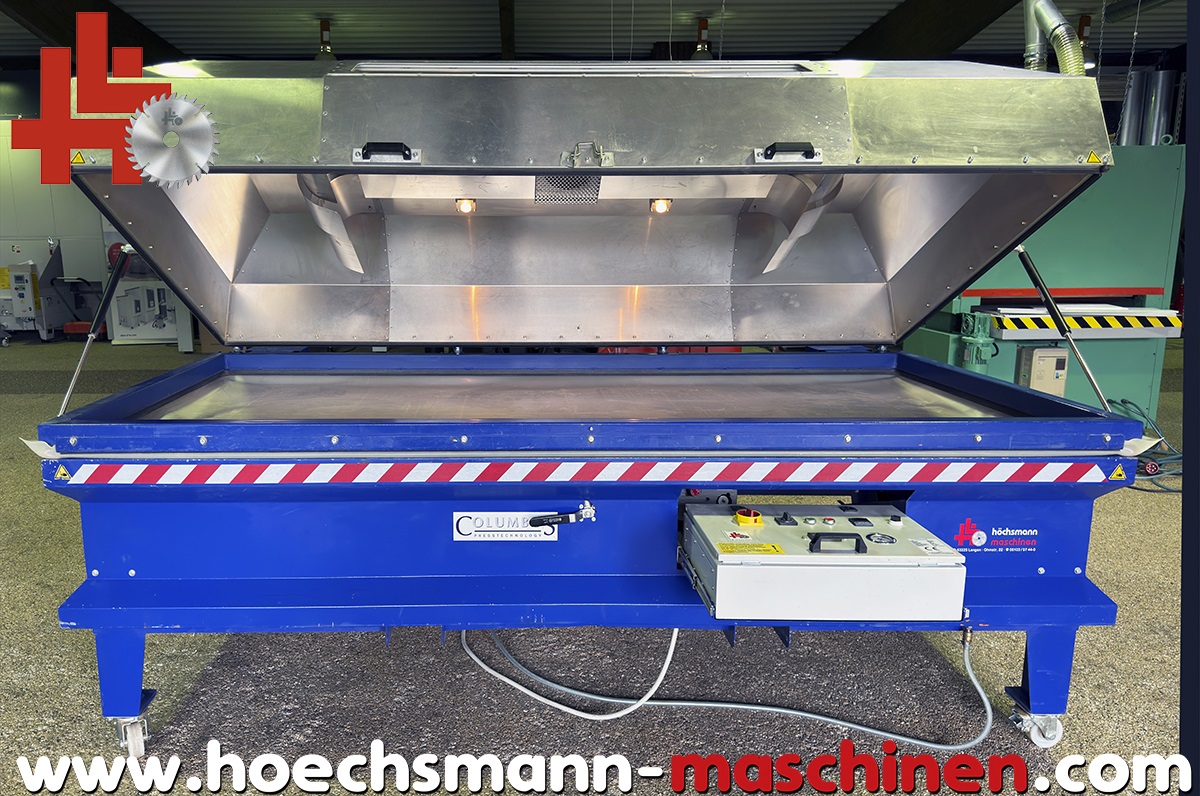

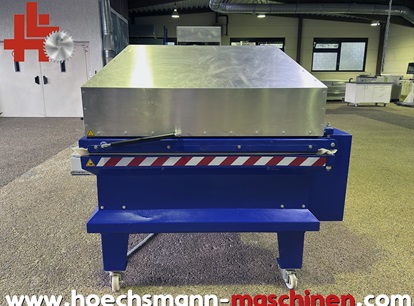

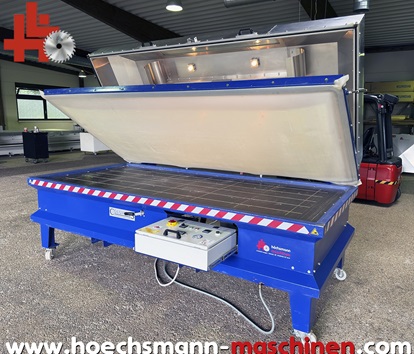

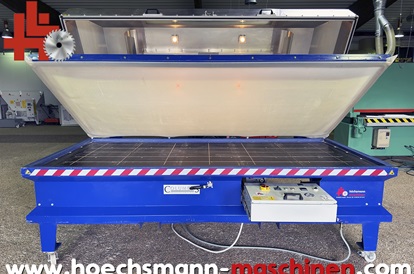

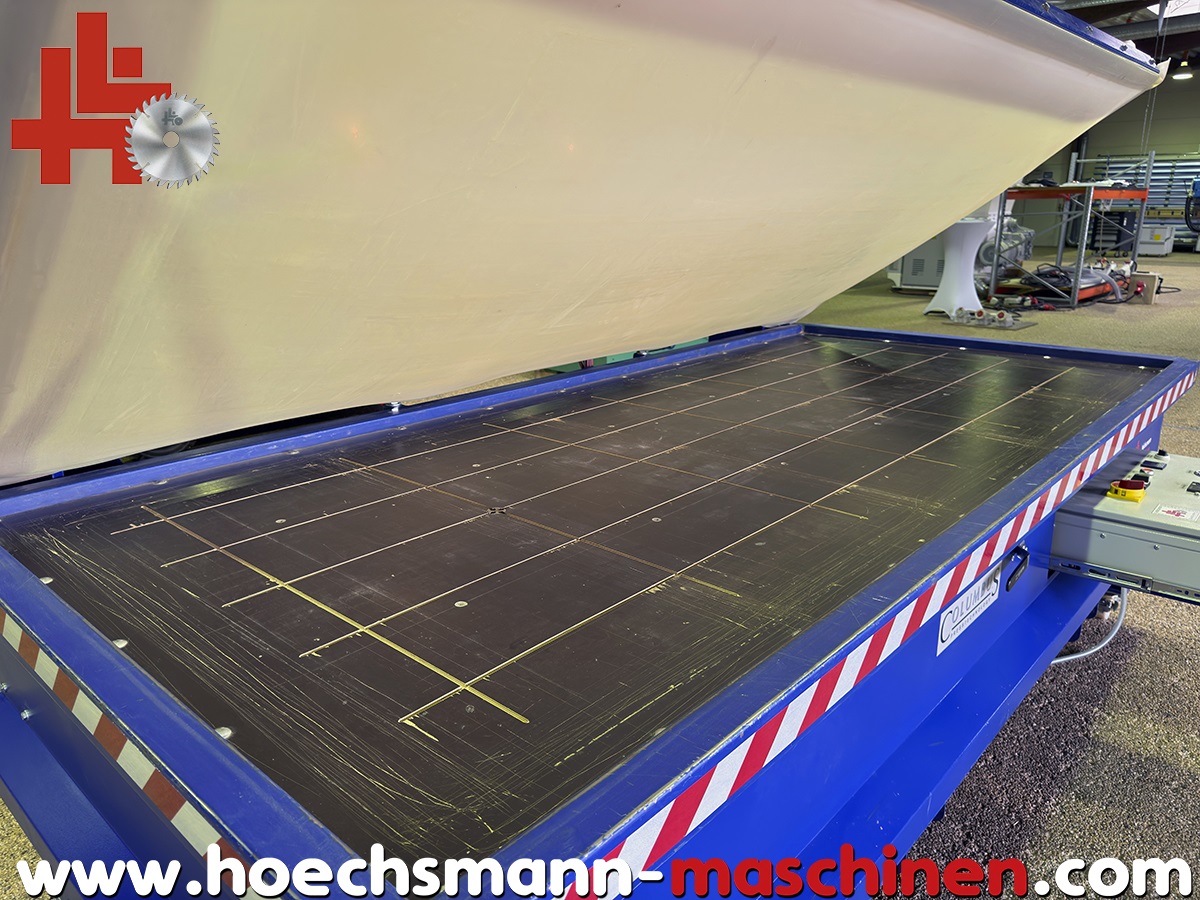

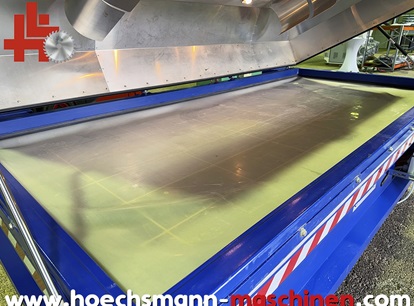

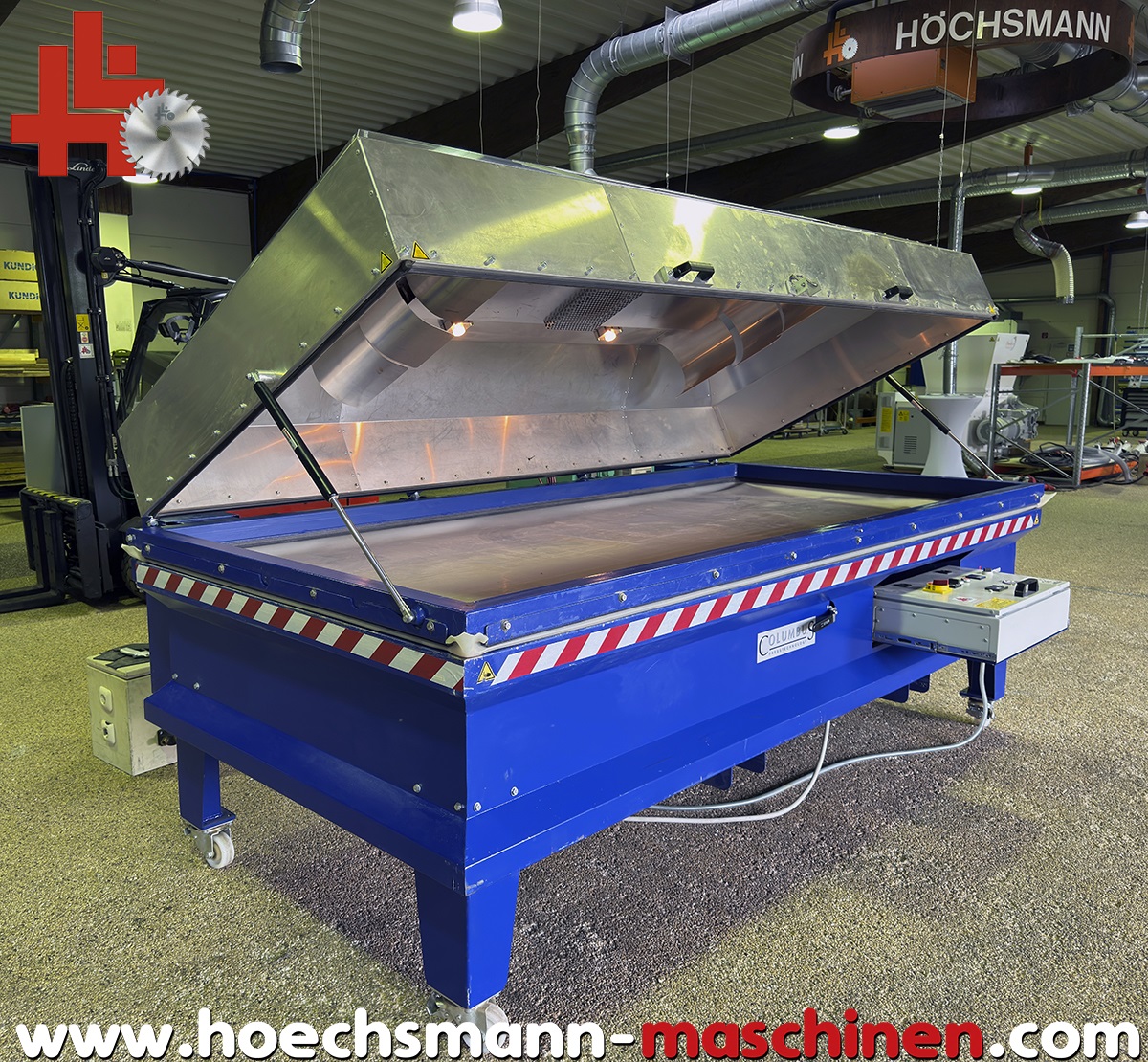

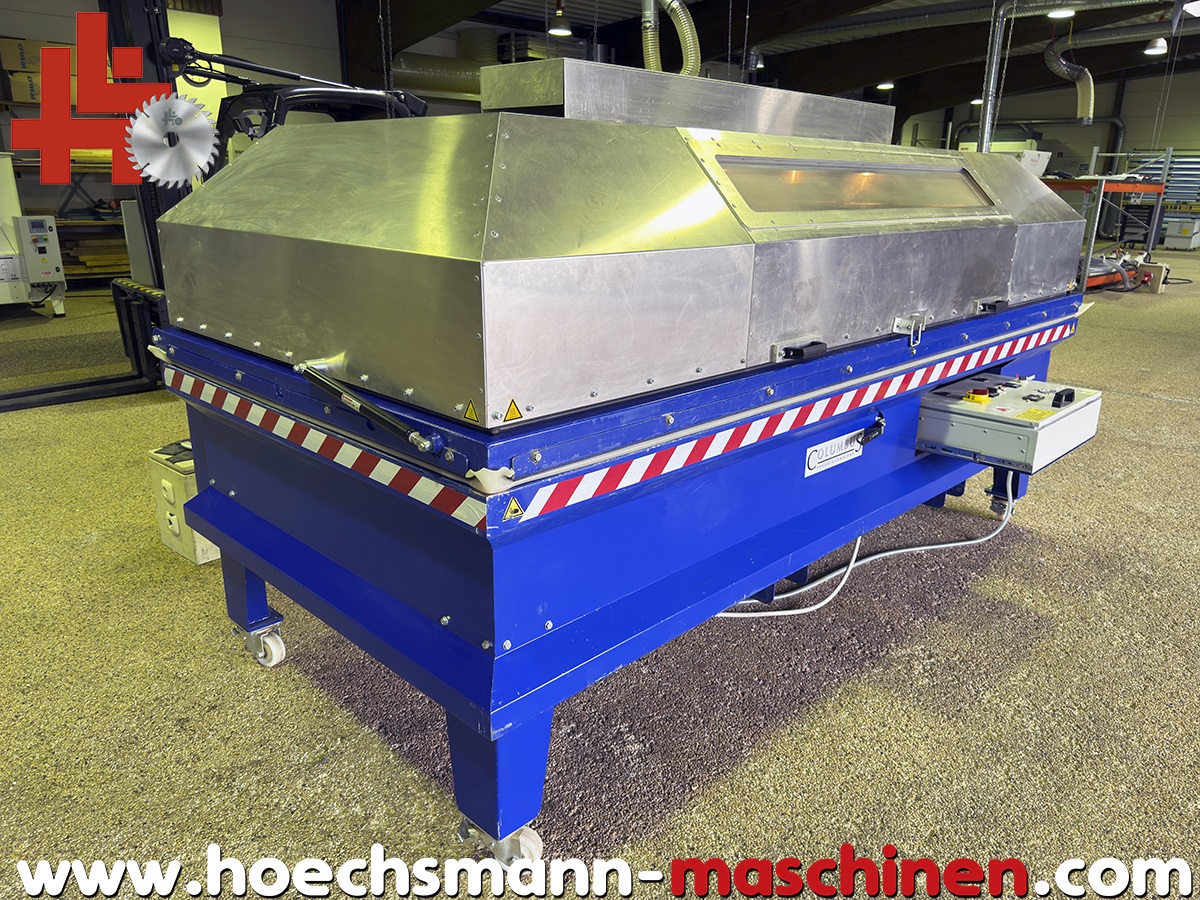

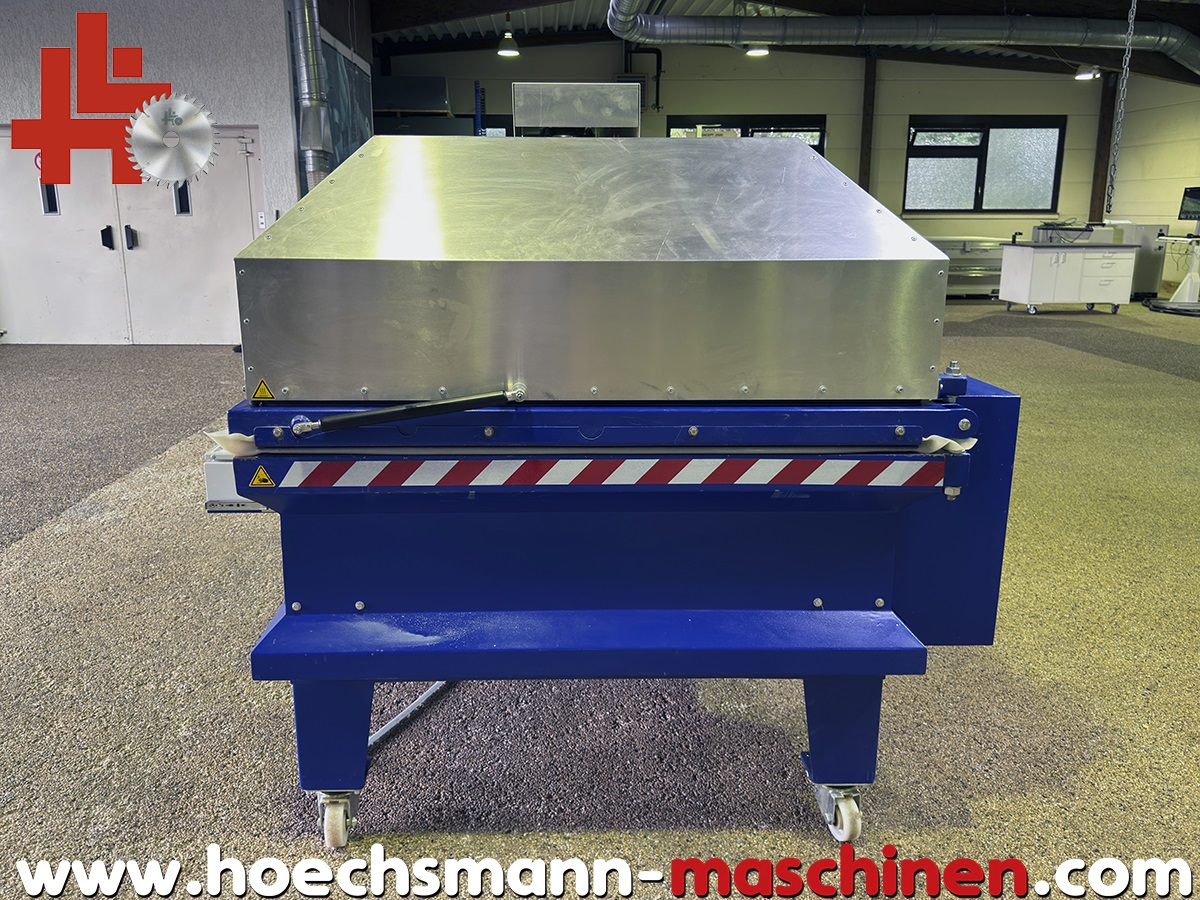

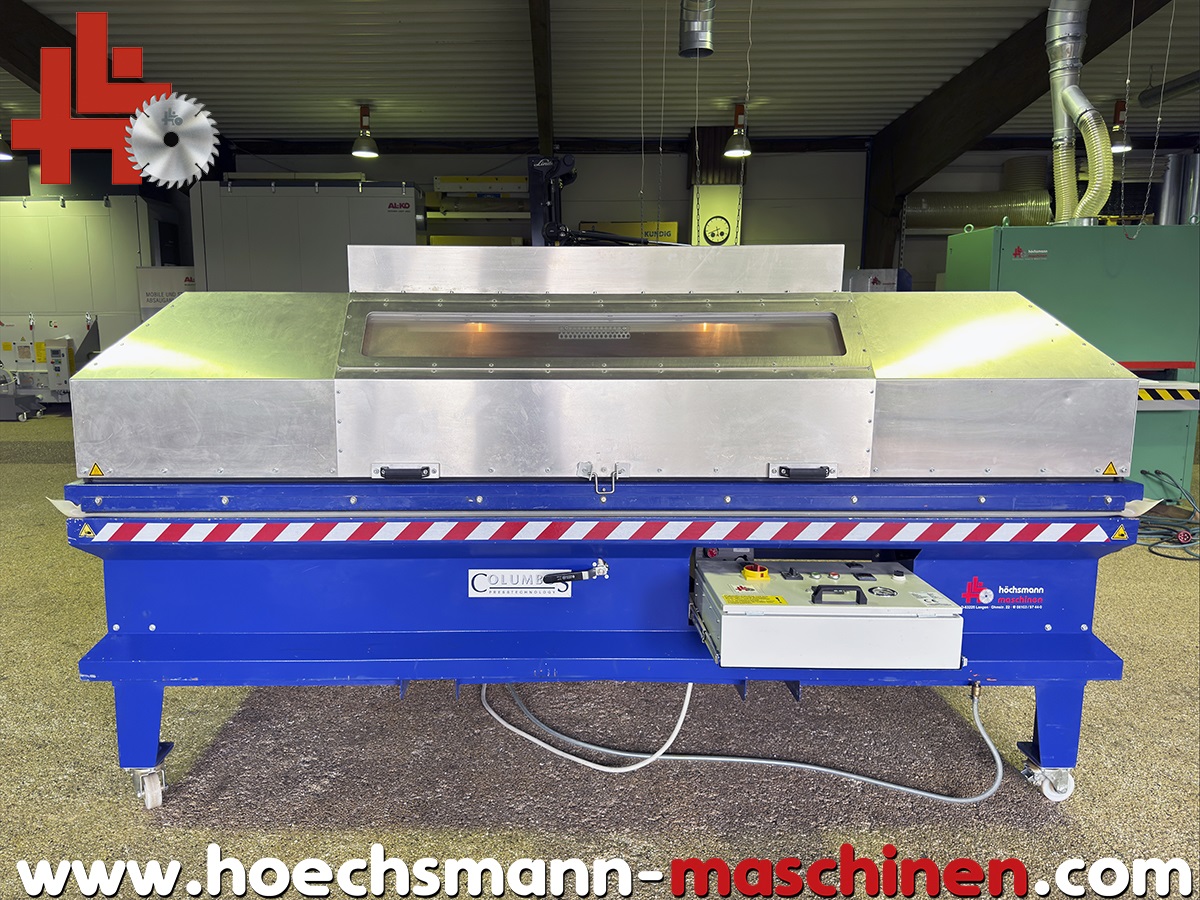

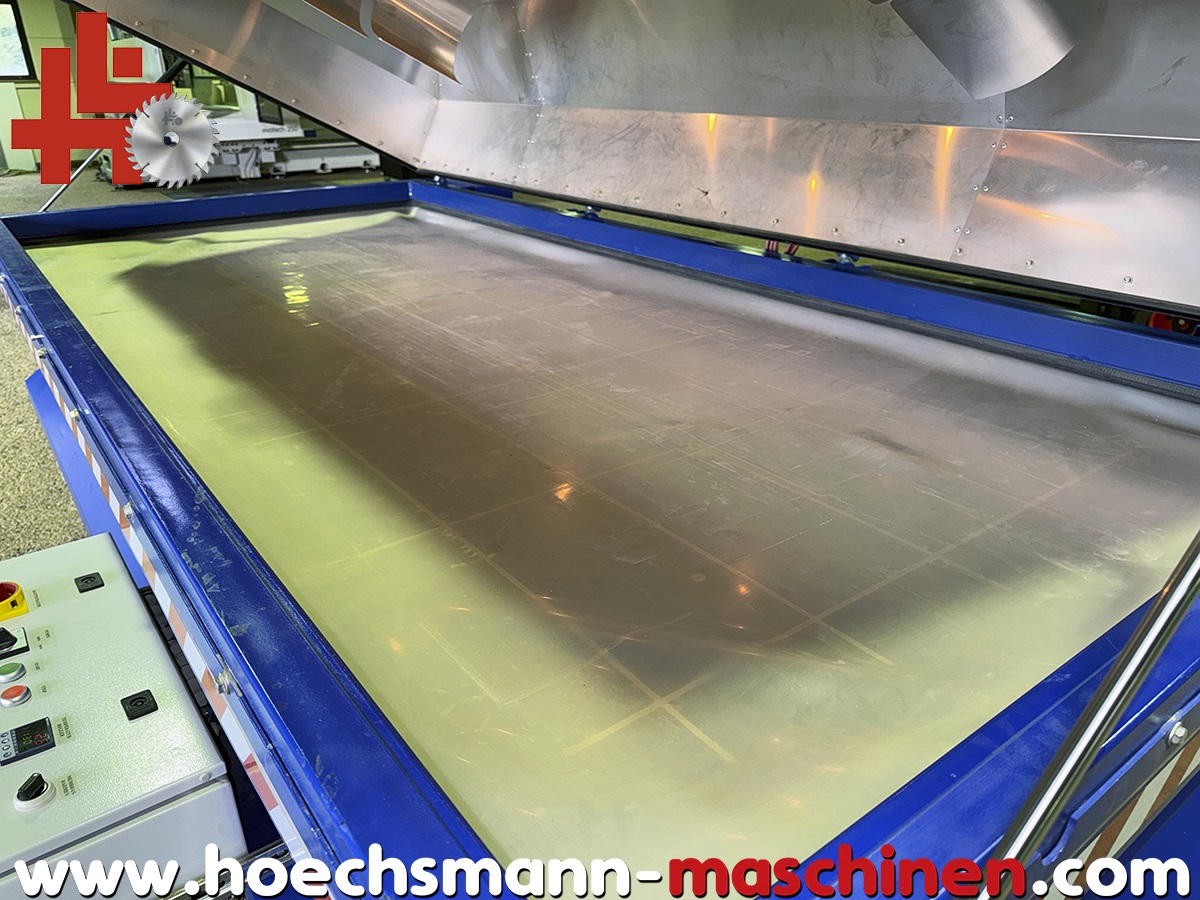

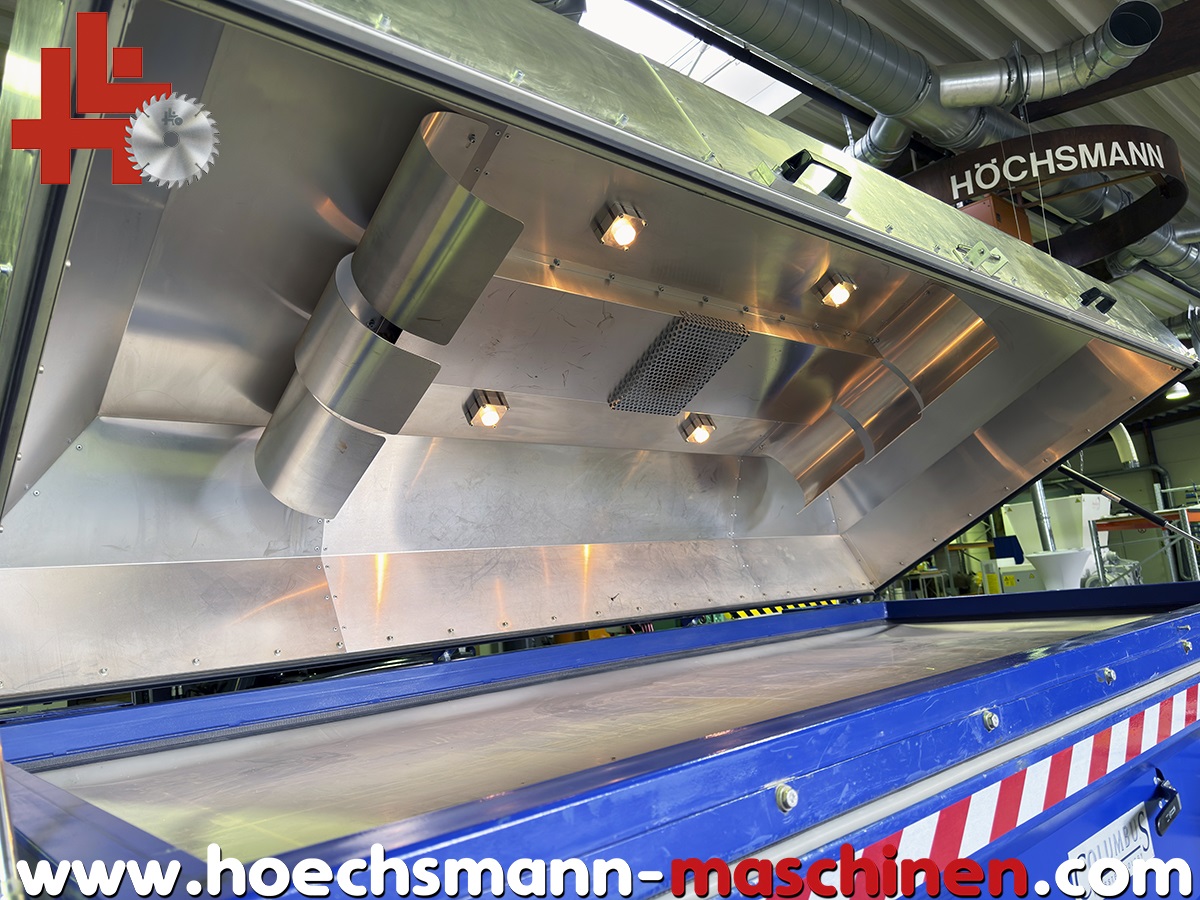

Columbus Multimat 3D Film Vacuum Press, diaphragm press, mobile table with a heating hood that swivels upward, pneumatically operated film sealing frame that swivels upward, high-performance Becker VT 4.40 vacuum pump with 40 m³/h suction capacity, -850 mbar ultimate pressure (8.5 t/m³), highly elastic silicone membrane, aluminum heating hood fully insulated and continuously adjustable from 0 to 140°C via digital control, overall dimensions 3,200 x 1,600 mm, usable area 2,800 x 1,200 mm, semi-automatic process control:

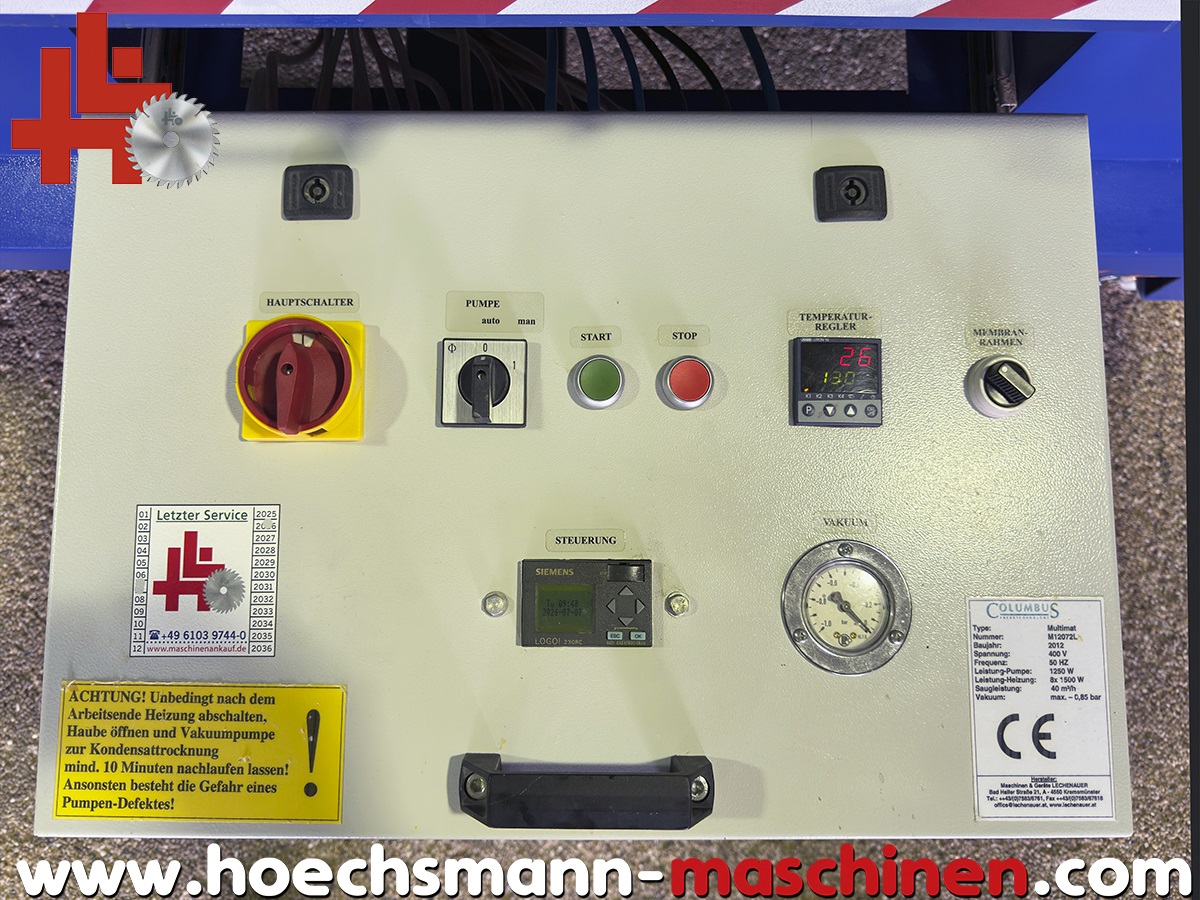

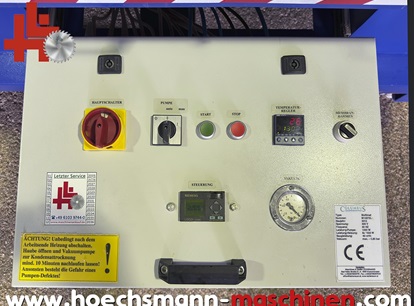

 After starting the automatic mode, the heating cycle to the preselected temperature begins; the vacuum pressing process is then automatically initiated, accompanied by an audible signal. The vacuum pressing process is terminated manually. The heating hood is opened and closed manually. The sealing frame is opened and closed pneumatically by pressing the control button.

Includes three rolls of Renolit 3D film

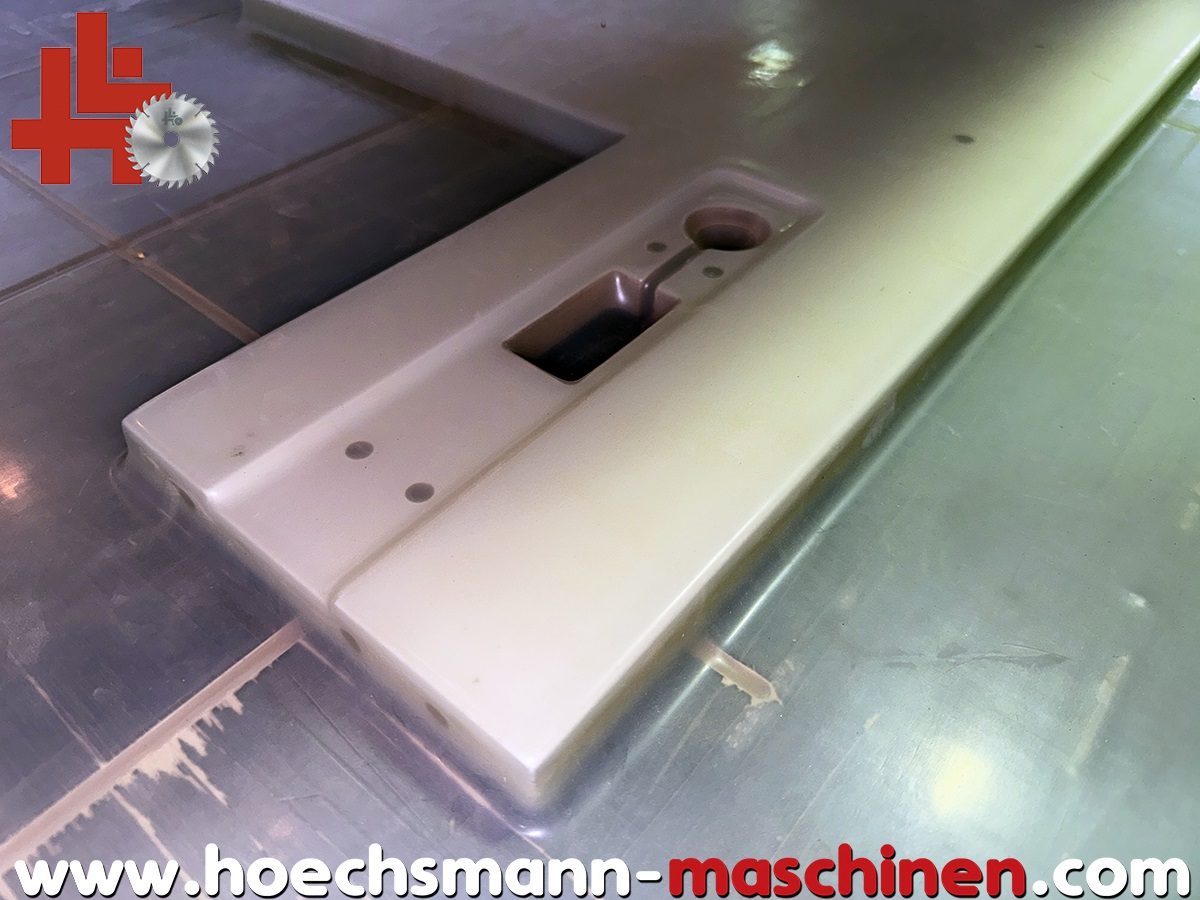

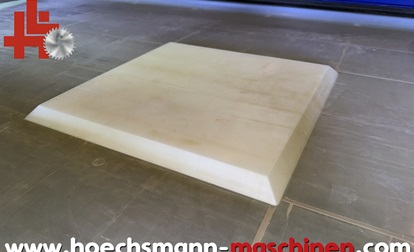

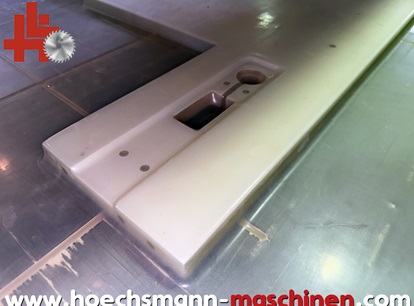

3D film coating: approx. 5–10 min depending on the amount of material applied (possible only with the heating hood)

Vacuum lamination: 15 min–6 h depending on the mold, material, and adhesive

Vacuum form veneering: approx. 10–30 min, depending on the mold and adhesive

(with the heating hood, up to 80% time savings for laminating, up to 60% for form veneering)

Former list price: 27.400,. Euro netto

Columbus Multimat Vacuum Press

To avoid trouble, please note the following important information:

All prices are net plus statutory VAT.

Sales exclusively to commercial customers.

Some of the machines contain accessories that are subject to a surcharge. Reservations only with a deposit. All used and demonstration machines are sold as is, with no warranty.

Only written agreements apply.

Payable immediately before or at the latest upon delivery or by leasing (by arrangement). Delivery difficulties (difficult entry into the building, lack of equipment for unloading, etc.) must be clarified beforehand. Delivery from Langen warehouse. Orders are subject to change and are checked by the management. The date of receipt of the orders is decisive in the case of multiple sales. Only the first order is valid! Delivery only after clarification of payment! Furthermore, our terms and conditions apply. You can find our terms and conditions on our website or on our order confirmations.
