STETON Durchlaufpresse PCT/50C 2513

STETON continuous press PCT/50C 2513

Machine valution, machine purchase, machine sale of woodworking machines

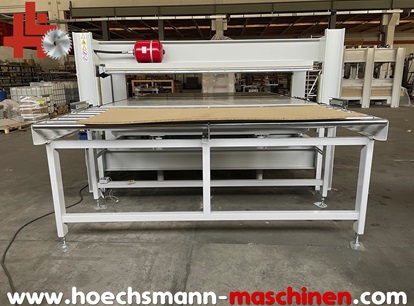

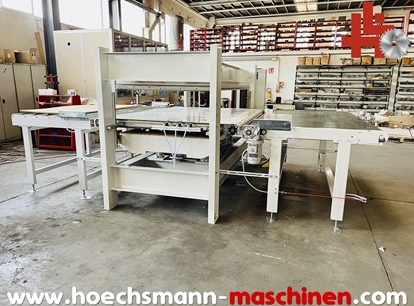

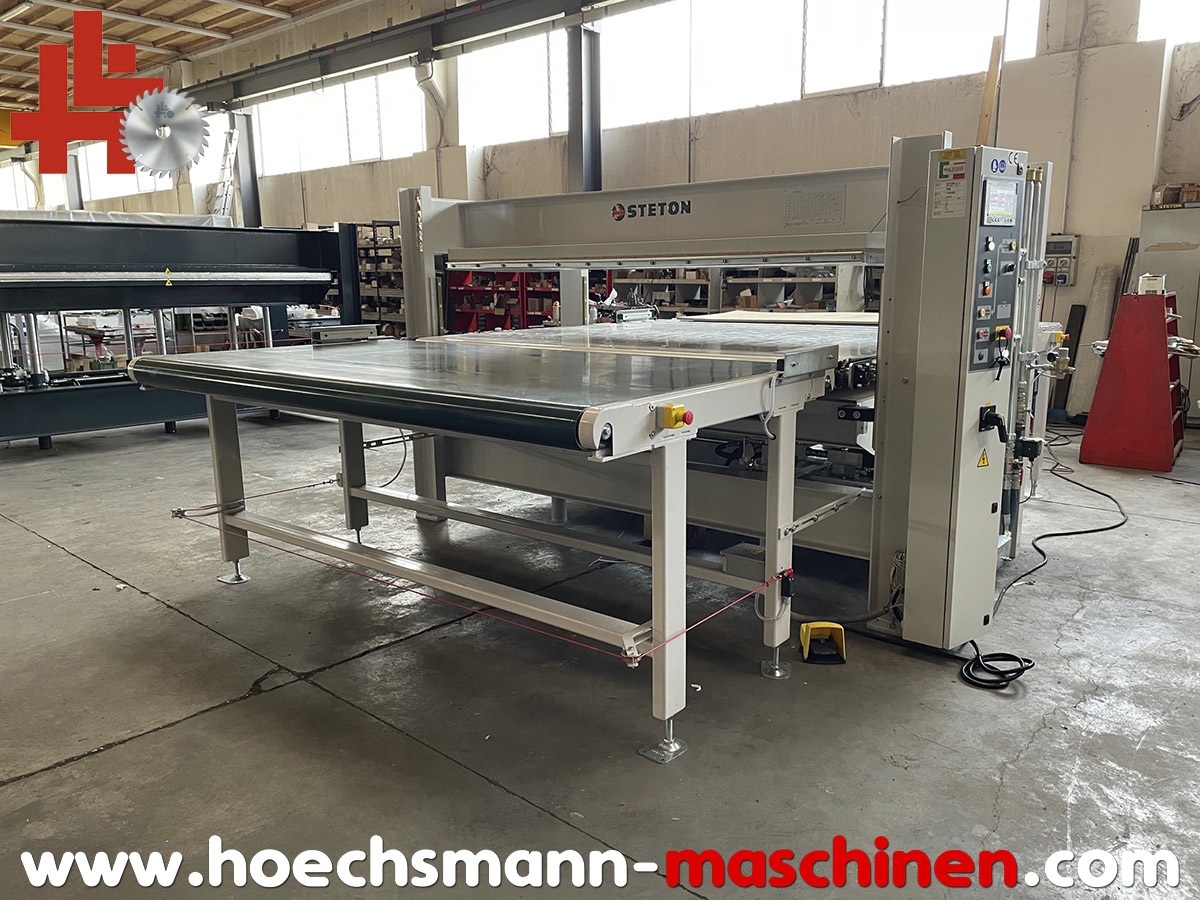

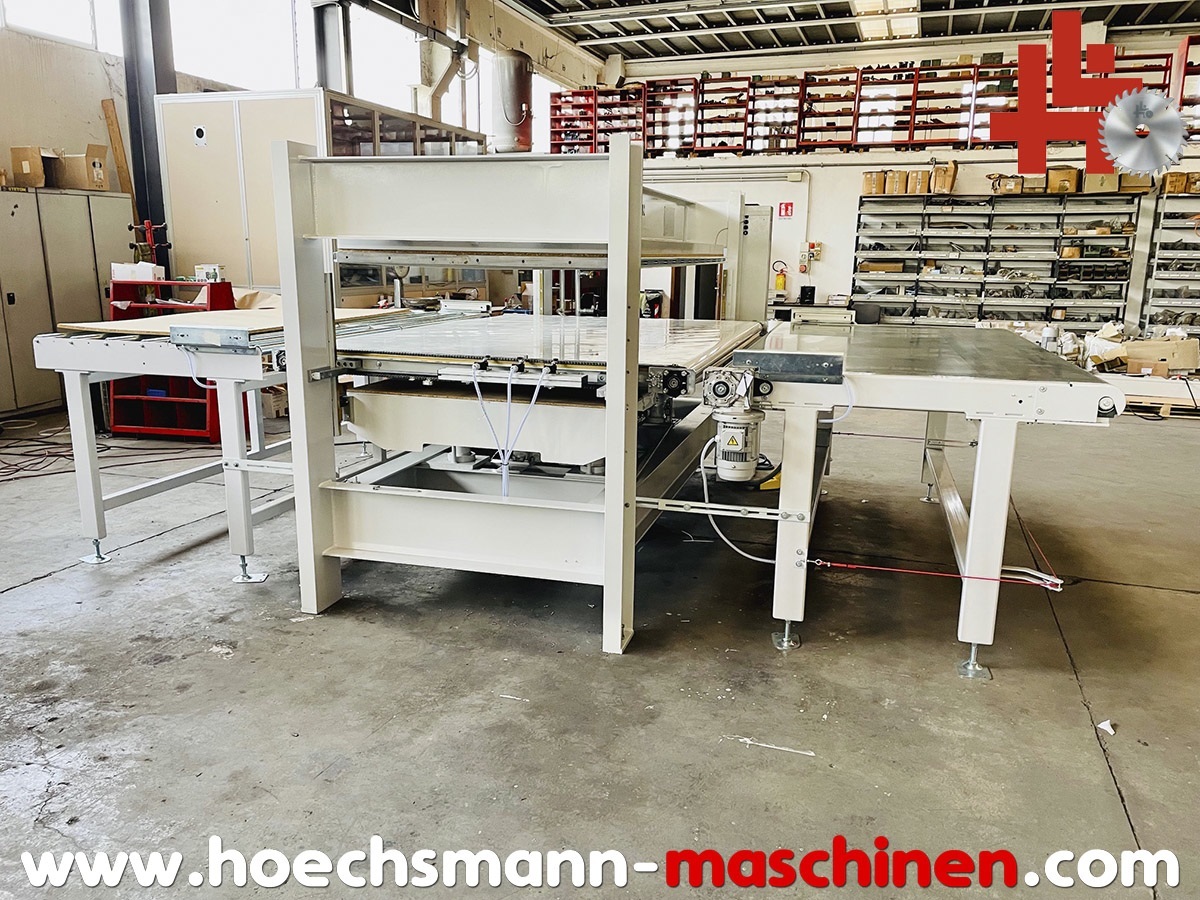

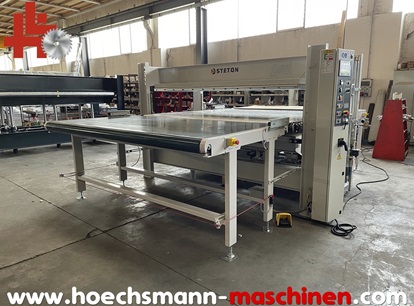

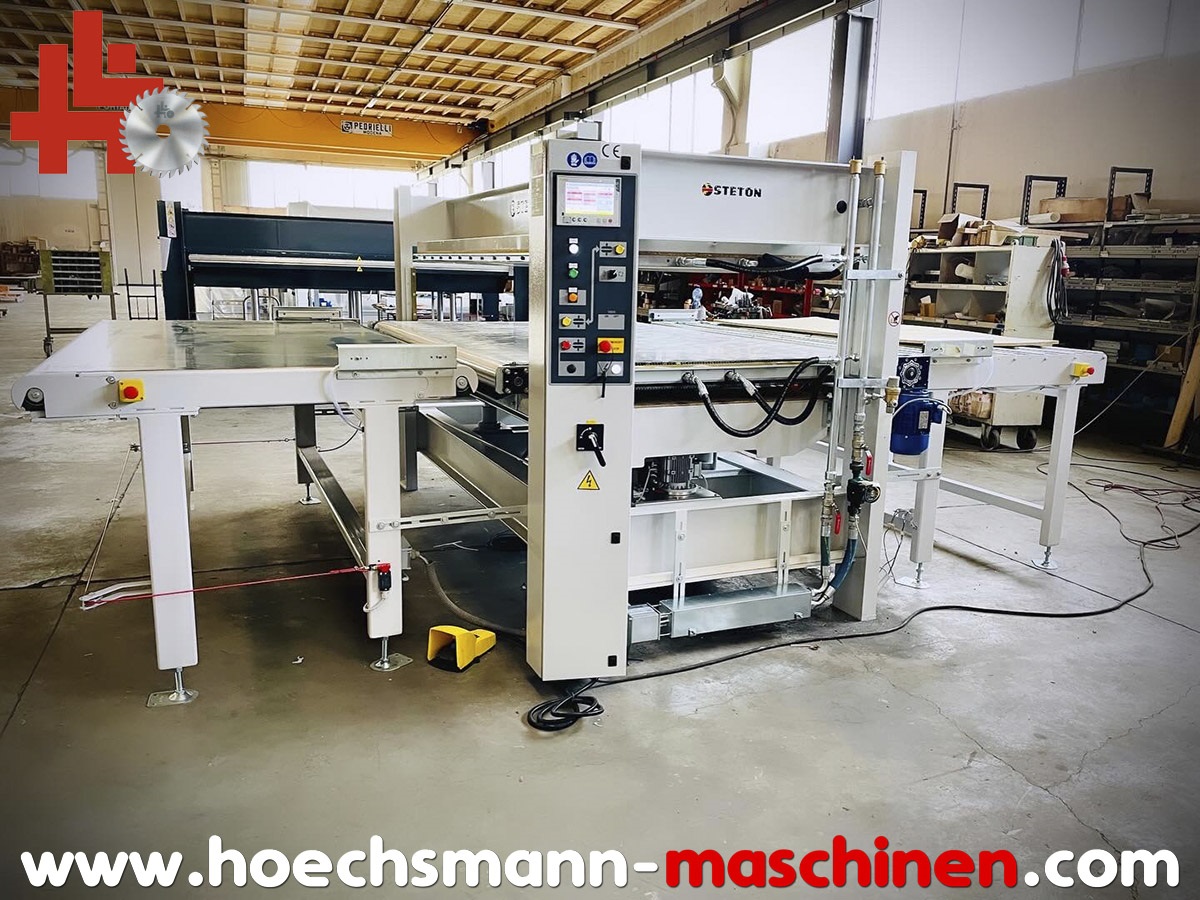

STETON continuous press PCT/50C 2513, new machine, CE sign,

Pressing area 2,500 x 1,300 mm with movable base plate, loading from the long side, oil heating system

The entire machine consists of:

1) hydraulic heated press PCT T 50 with MYLAR film,

- 50 tons of pressure on 2,500x1,300 mm pressing surface, with solid drilled 42mm plates

- Specific pressure on 100% of the surface 1.4 kg/cm2

- Closing of the panels from bottom to top by 4 cylinders with Ø 70 mm

- Total opening 450 mm

- Temperature max. 120°C

- Electrical power oil boiler 18 Kw

- Hydraulic unit with 2 HP

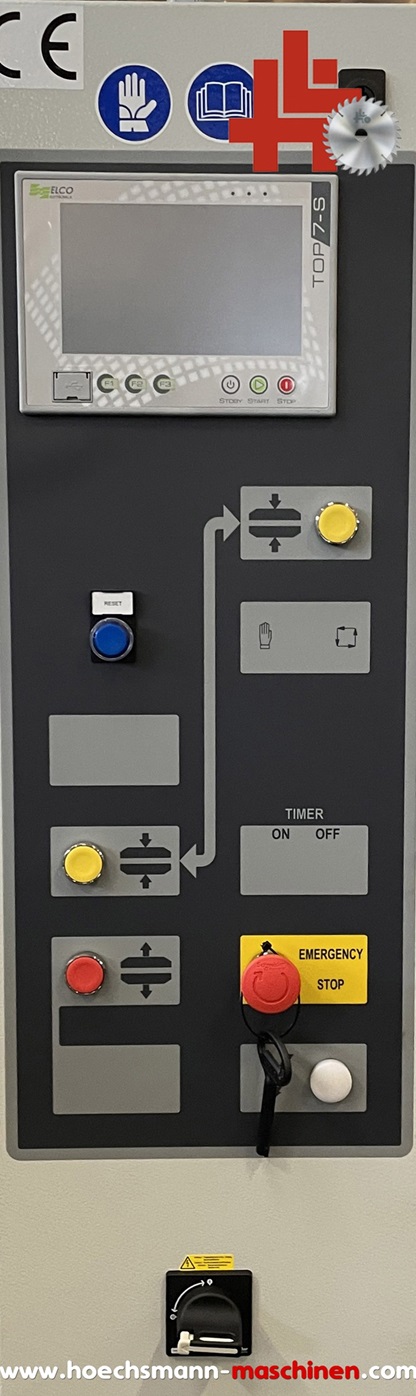

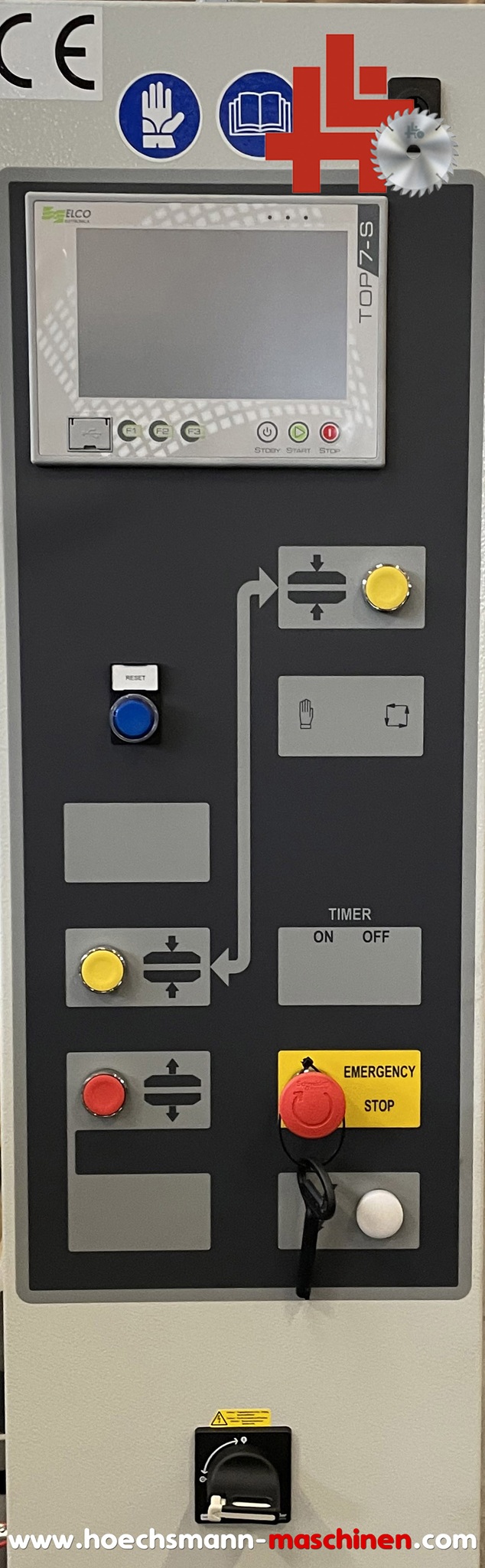

equipped with color LCD touch screen for:

- Setting and displaying the working pressure and working temperature

- Setting the timer to set the pressing time

- Programming of automatic switch-on times for different days of the week

- Automatic regulation of the pressure (BAR) of the control unit, depending on the specific pressure to be applied to the elements to be pressed,

  Storage of data from the last pressing

- Possibility to save up to 100 programs (temperatures, specific pressure, pressing time, plate dimensions, etc.)

- Diagnosis of error messages

- Folder for managing programs and creating daily reports

- Alarm memory

- Management of a Modbus TCP profile for the exchange of information between the press and a possible Modbus management system

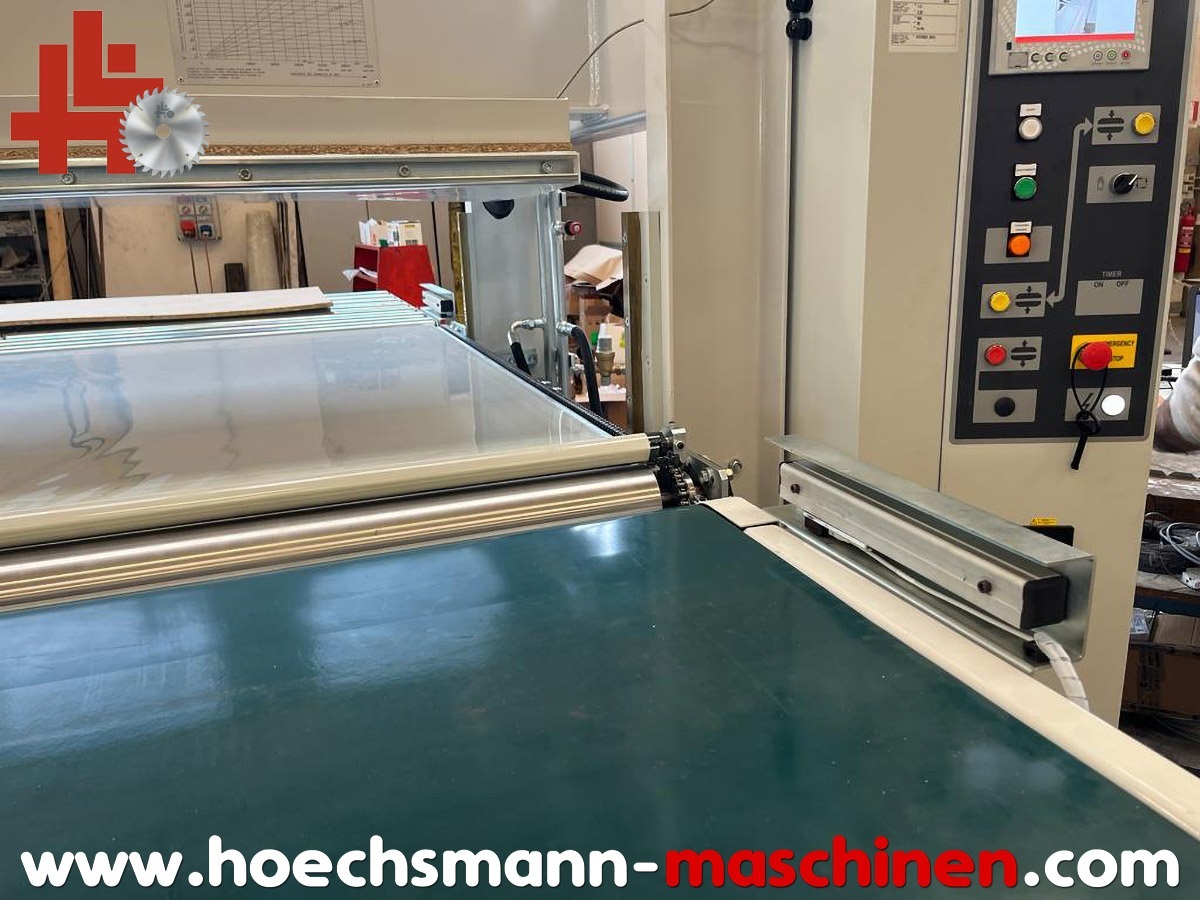

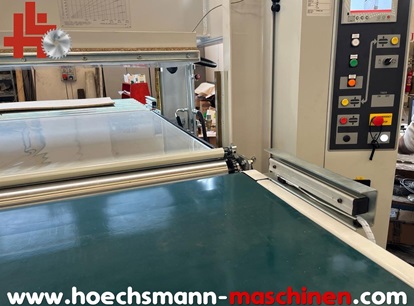

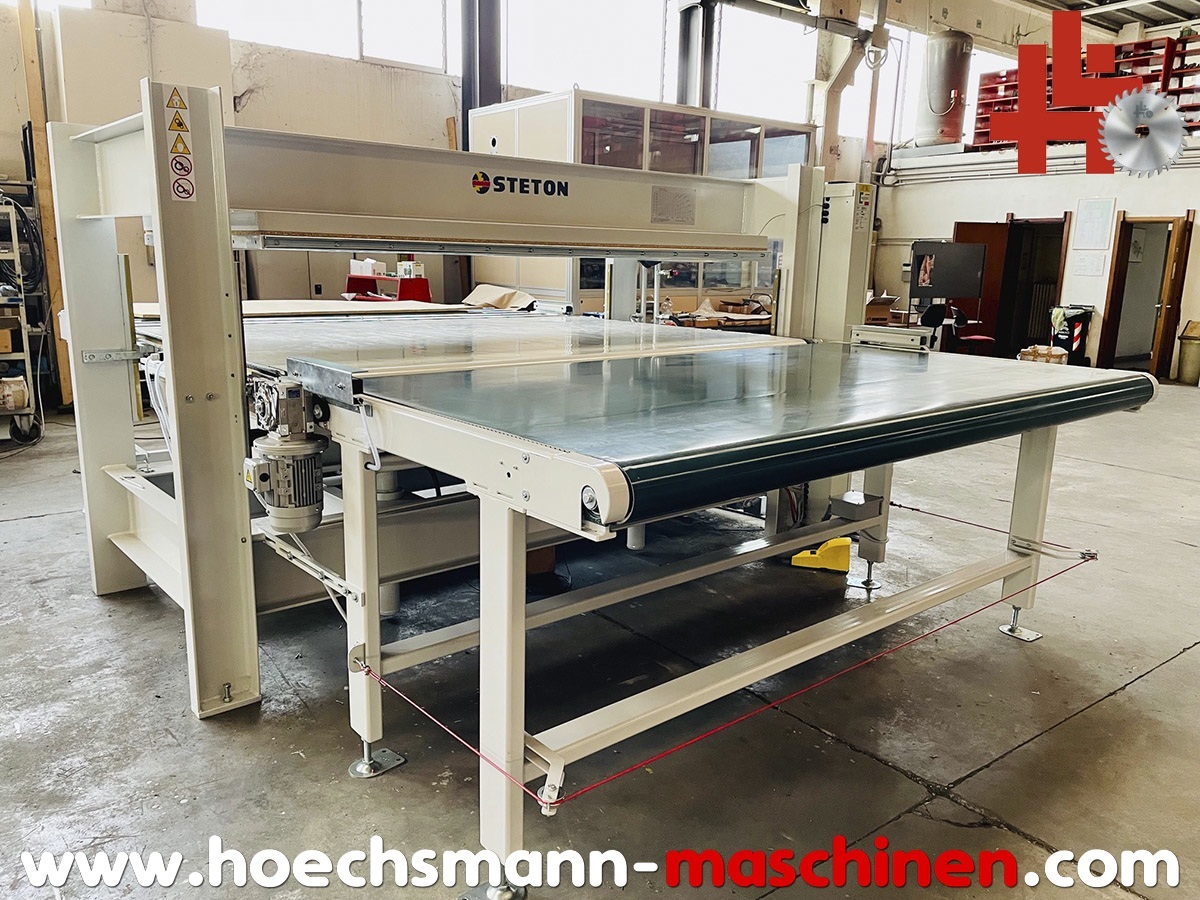

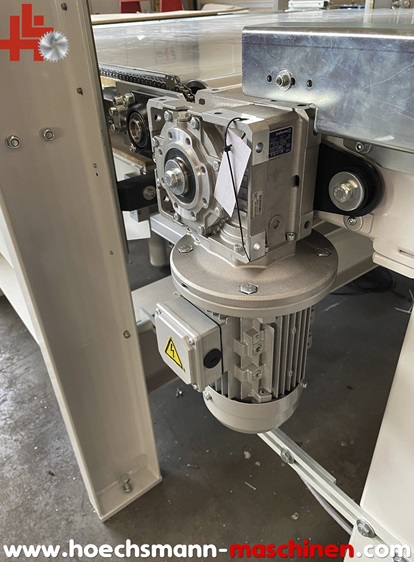

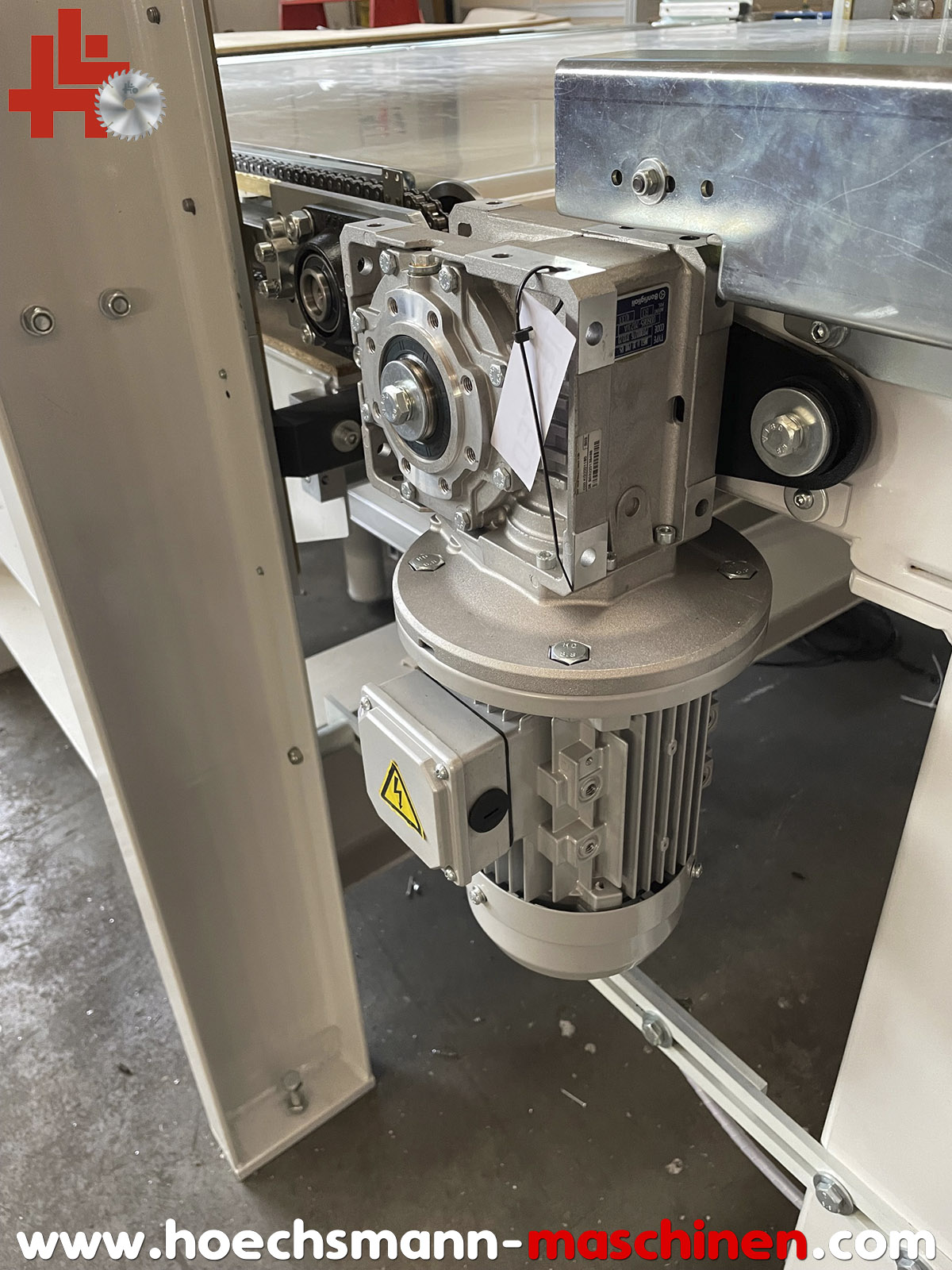

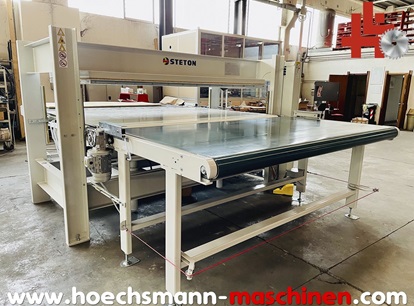

2) Motorized material infeed with 2,500x1,300 mm conveyor belt,

    belt speed 19m/min, controlled by inverter,

    start/stop foot switch and emergency stop switch, emergency pull cord

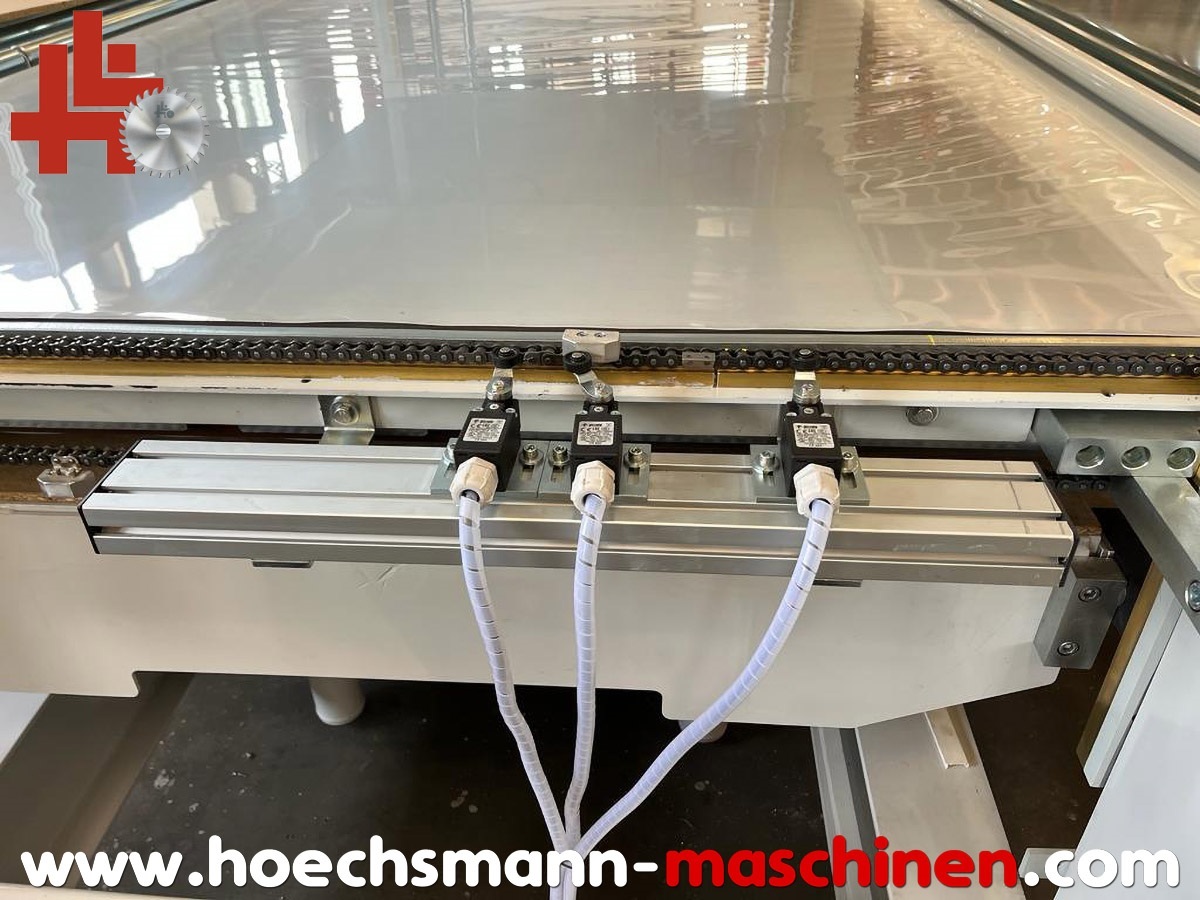

    Light barrier for material entry and material length

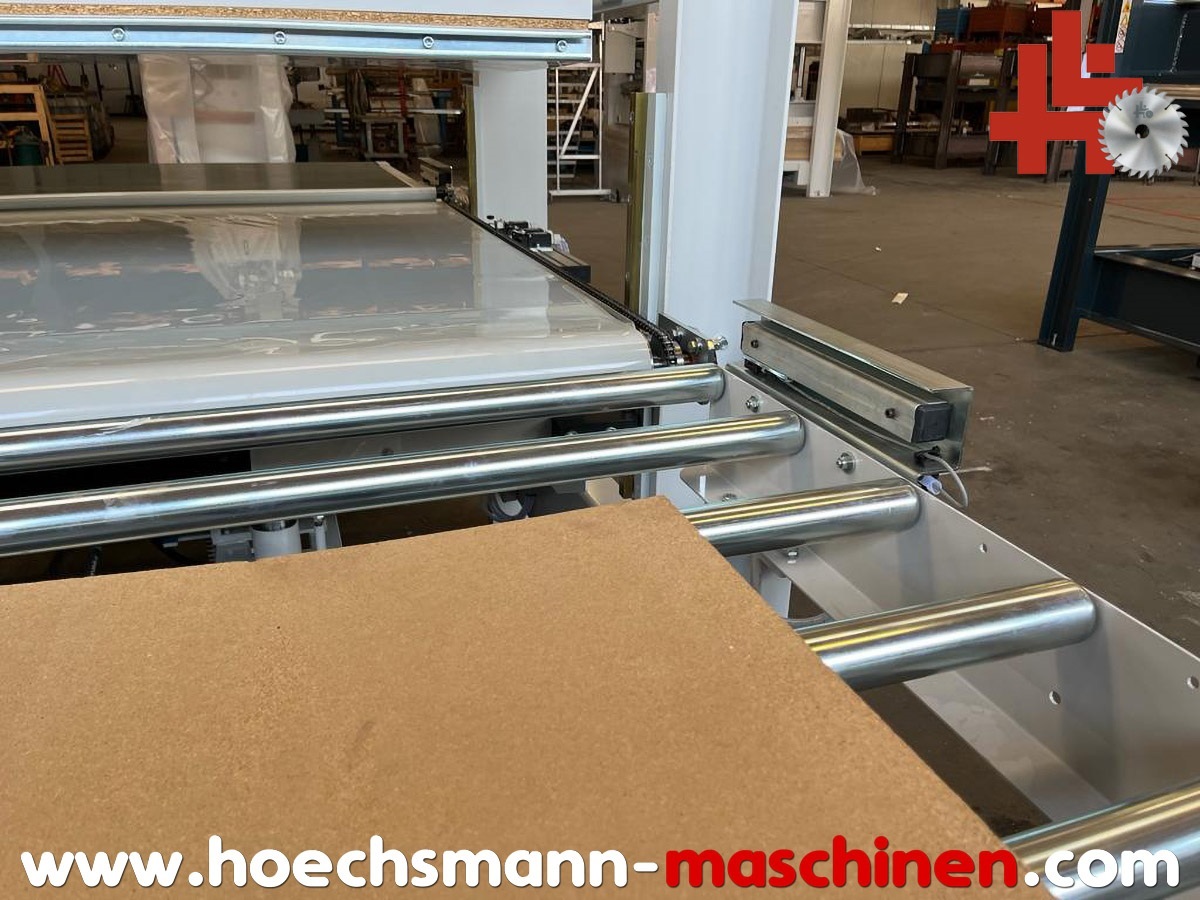

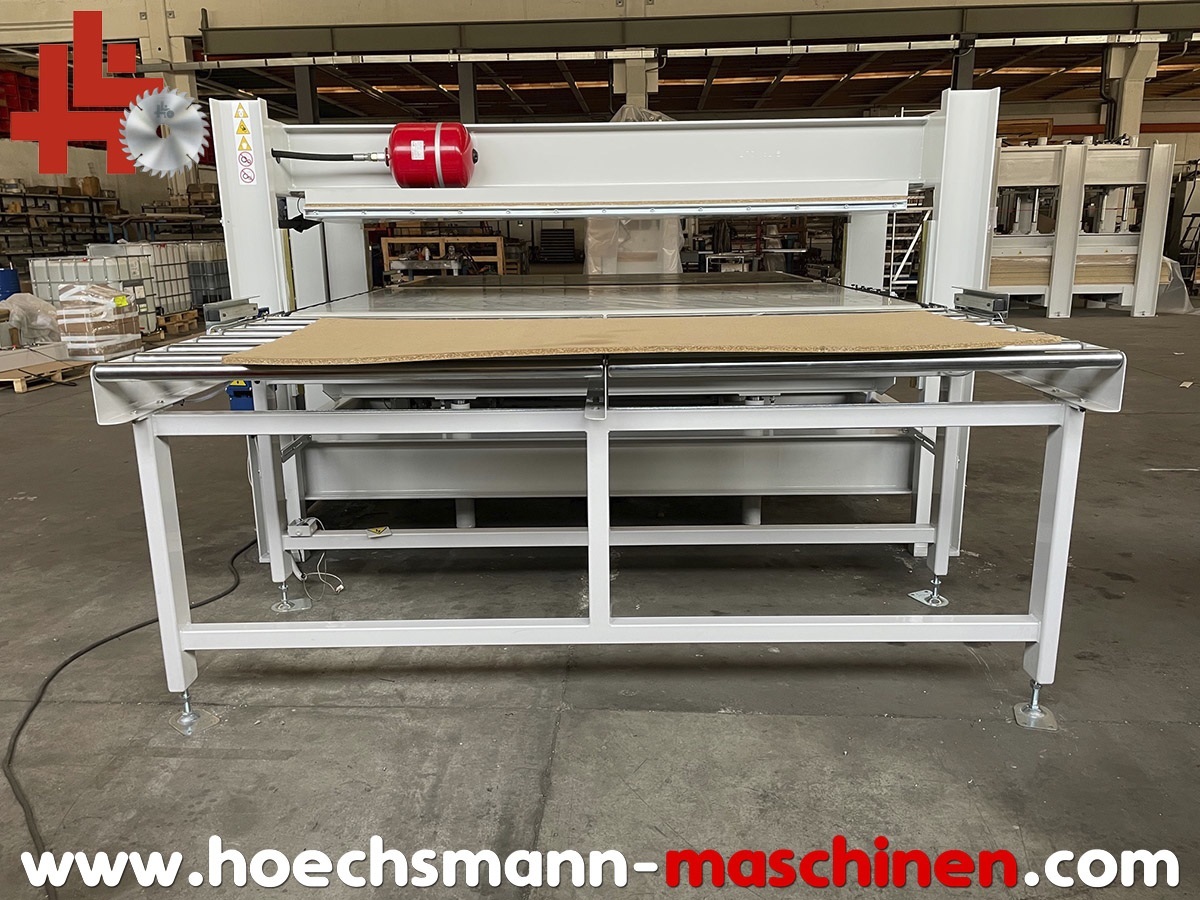

3) Free-running rollers on exit side with 1,300 x 2,500 mm,

    galvanized rollers with ball bearings, roller spacing 200 mm, emergency stop, photocells for material supply
