29.890,- Euro
depending on equipment, accessories and service
Machine valution, machine purchase, machine sale of woodworking machines

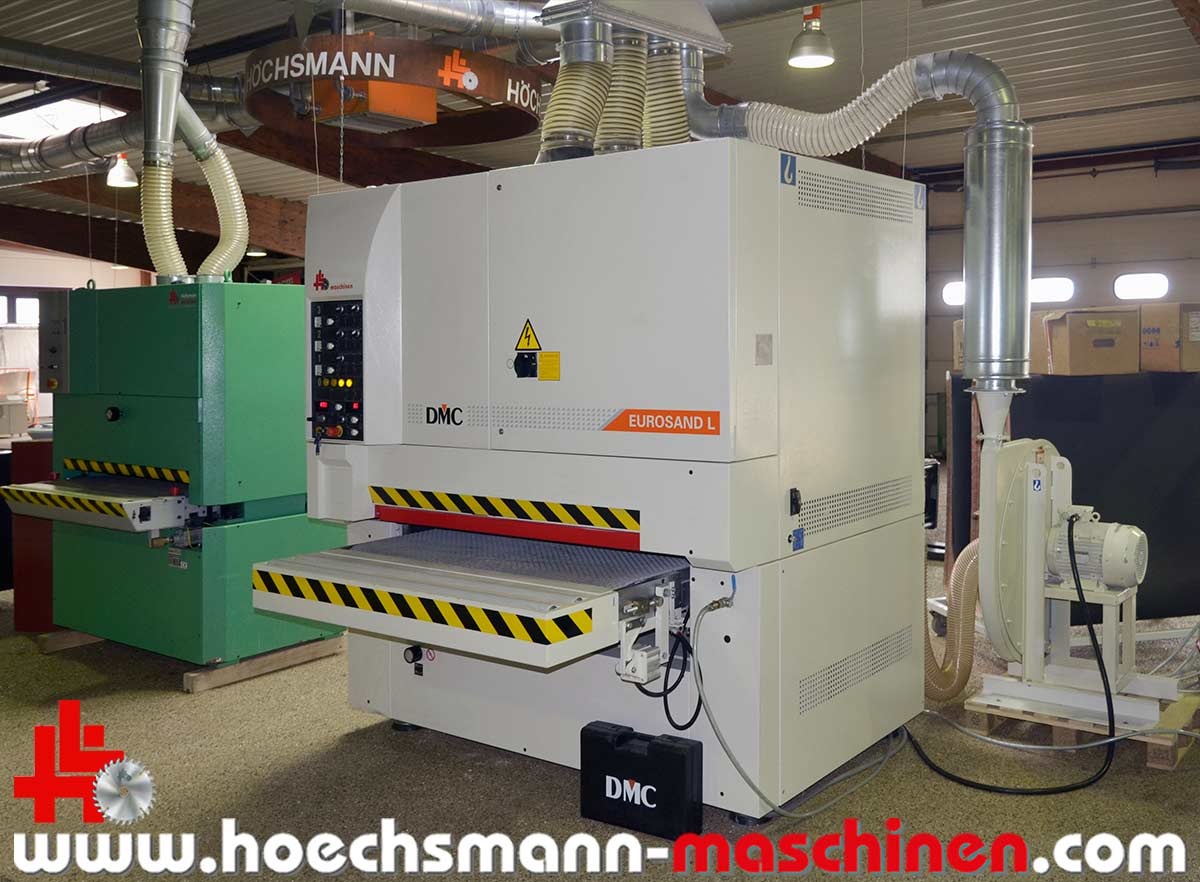

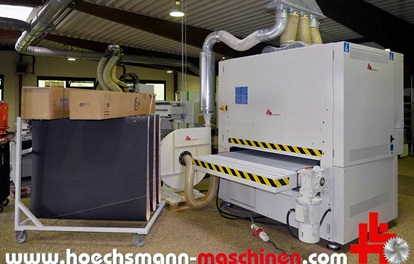

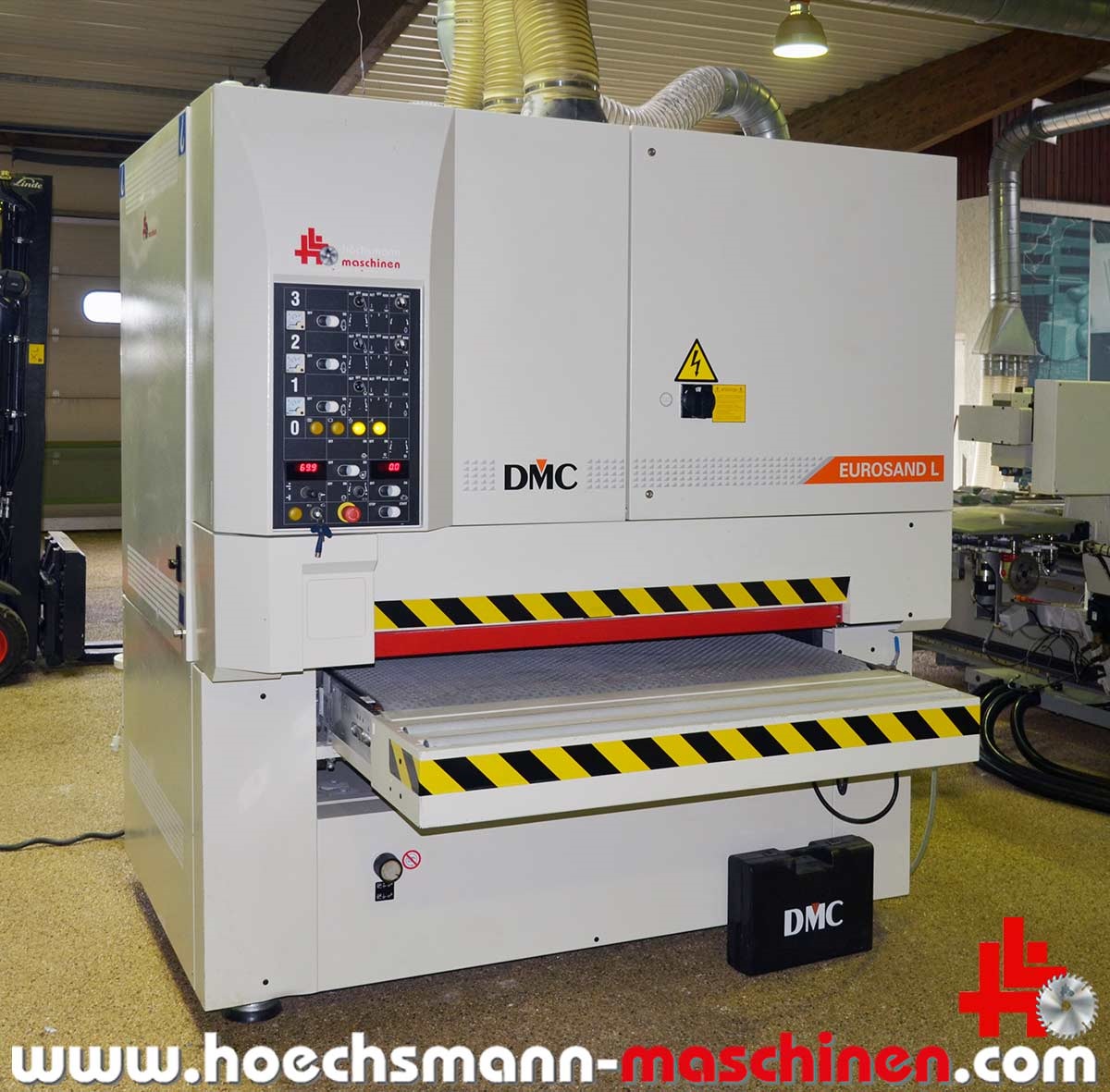

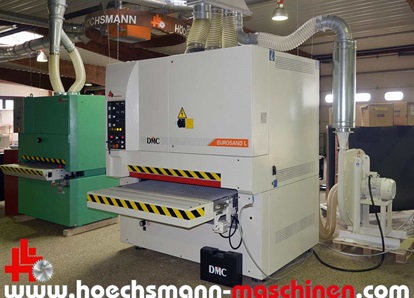

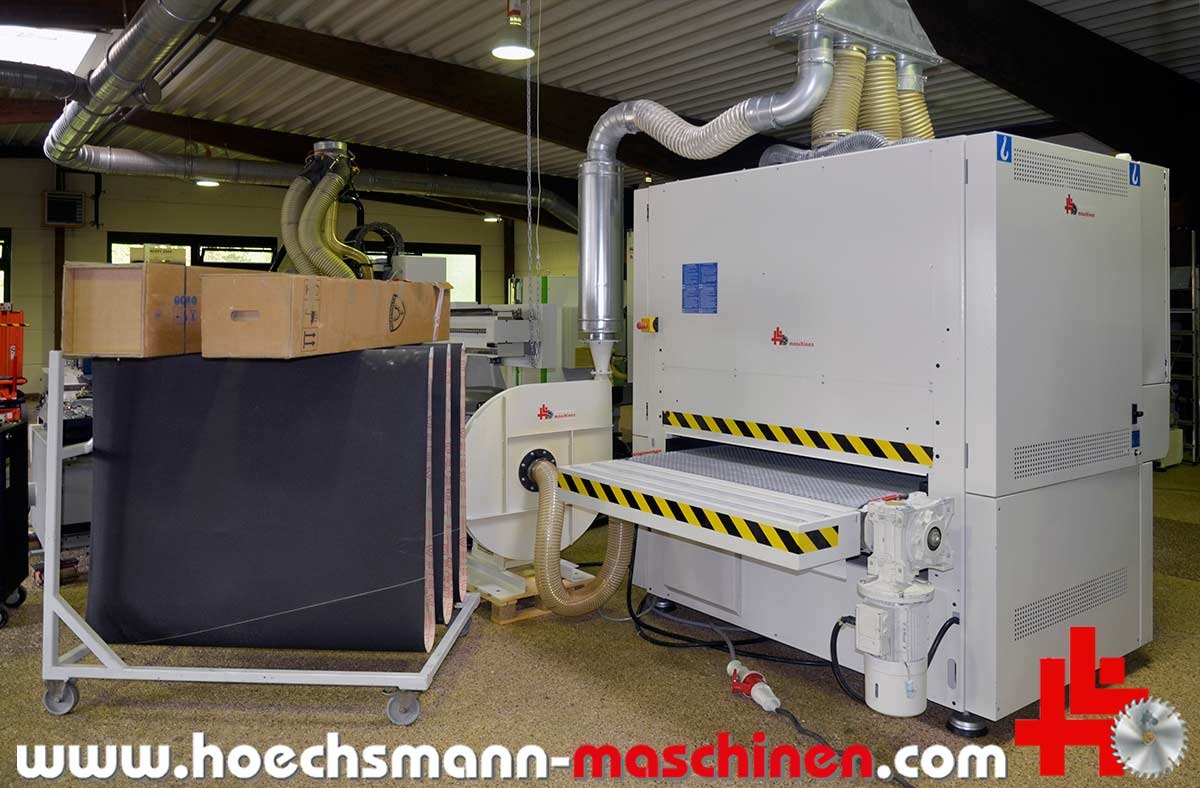

SCM DMC ERL 1350 RRR wide-belt sander, built in 2011, CE sign, sanding width 1,350 mm, with 3 sanding units and 3 motors

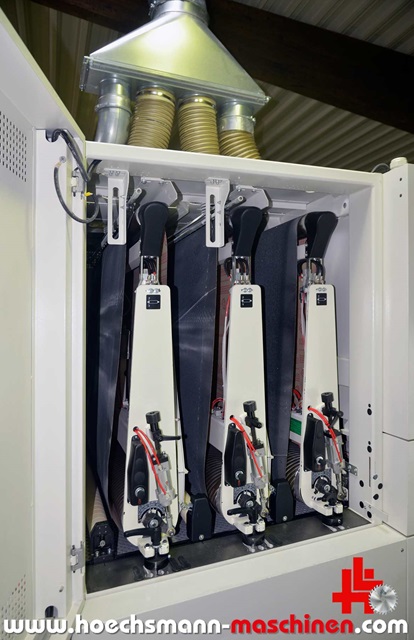

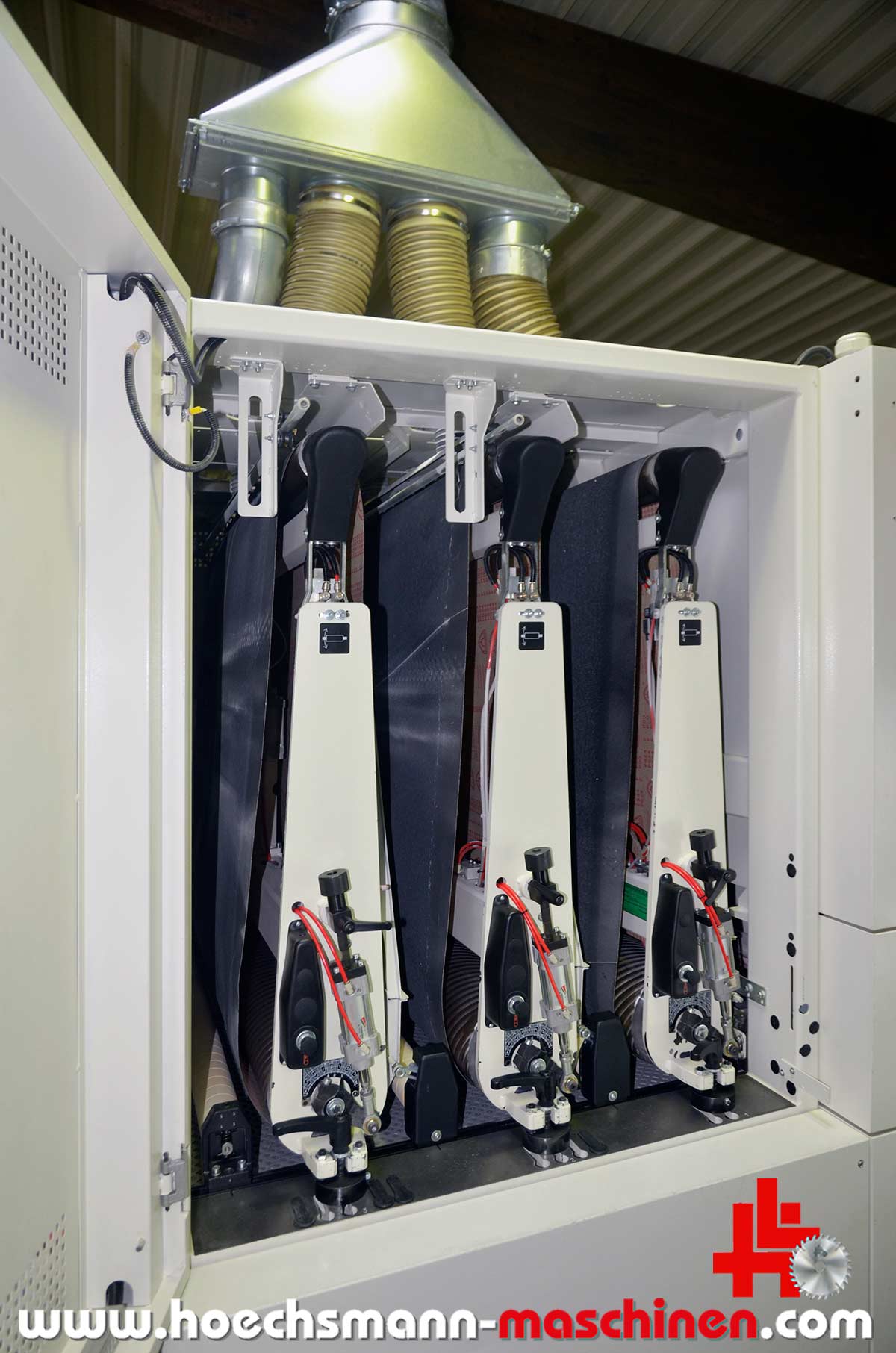

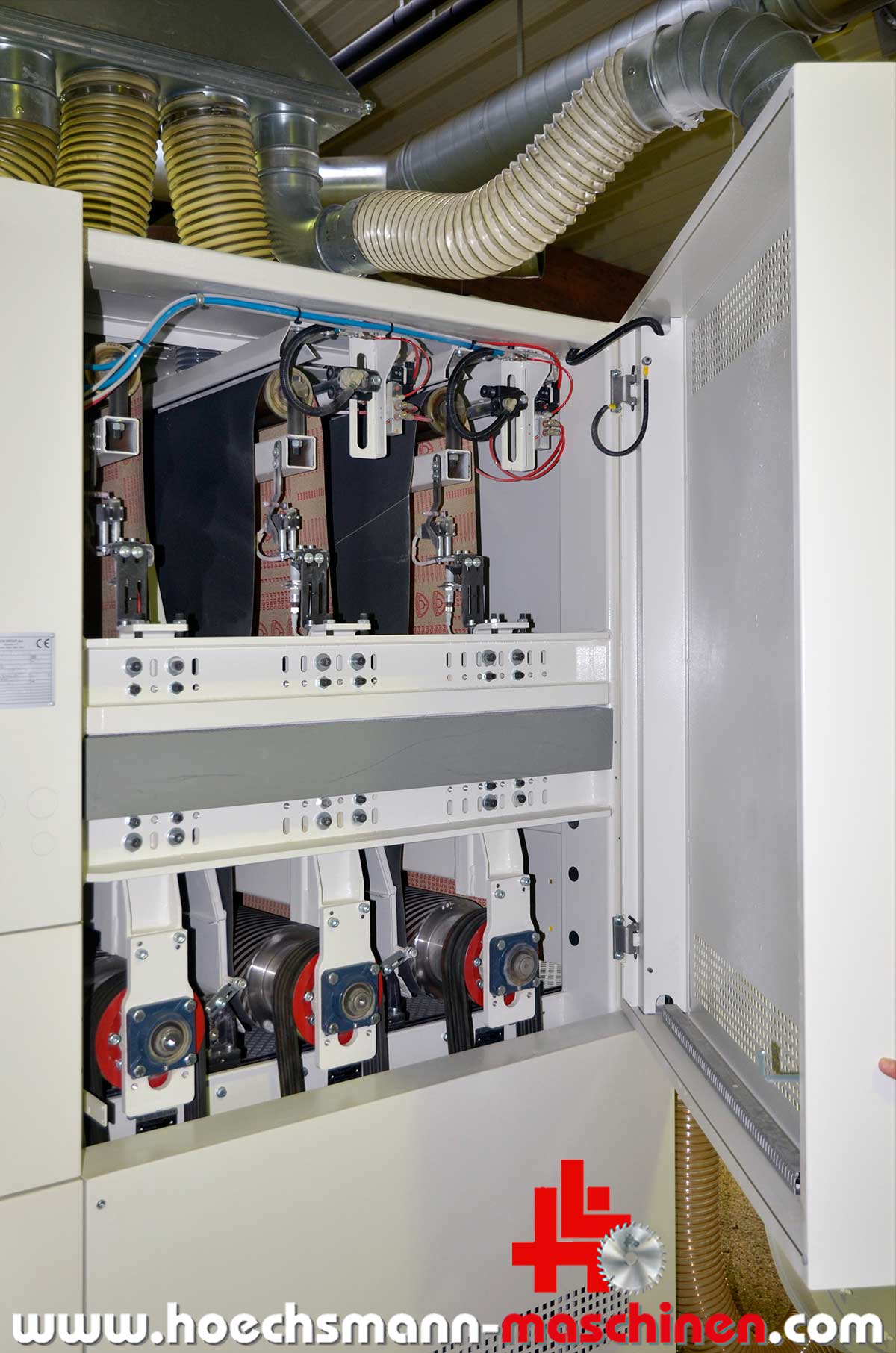

1. “RA” roller unit with diagonally ribbed steel contact roller, Ø=200 mm, 18.5 kW
2. “RA” roller unit with diagonally ribbed steel contact roller, Ø=200 mm, 18.5 kW
3. “RA” roller unit with diagonally ribbed steel contact roller, Ø=200 mm, 18.5 kW

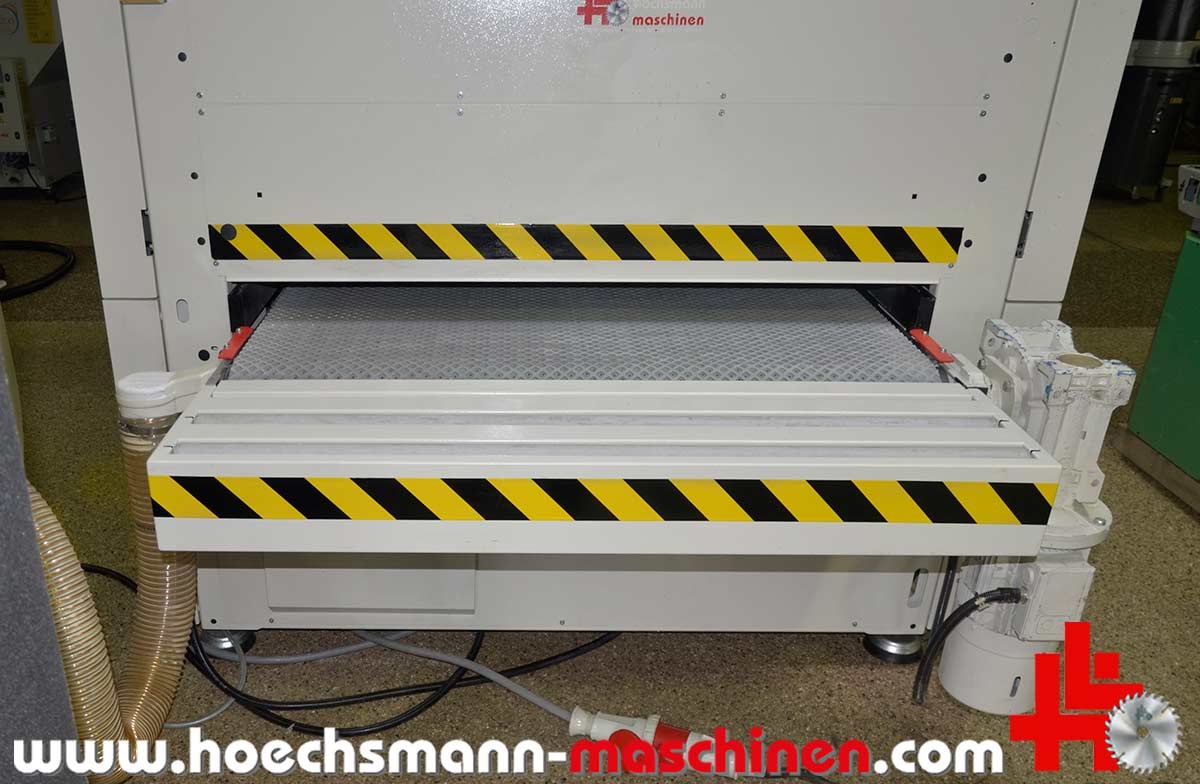

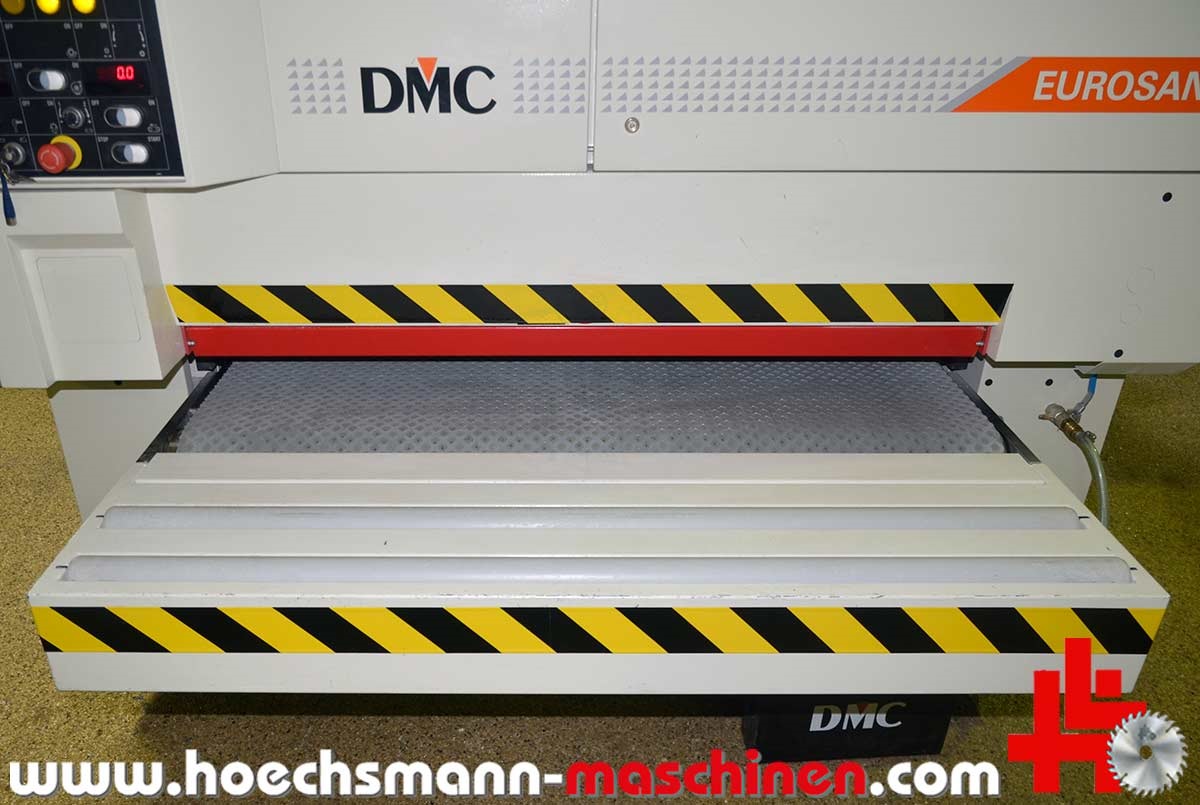

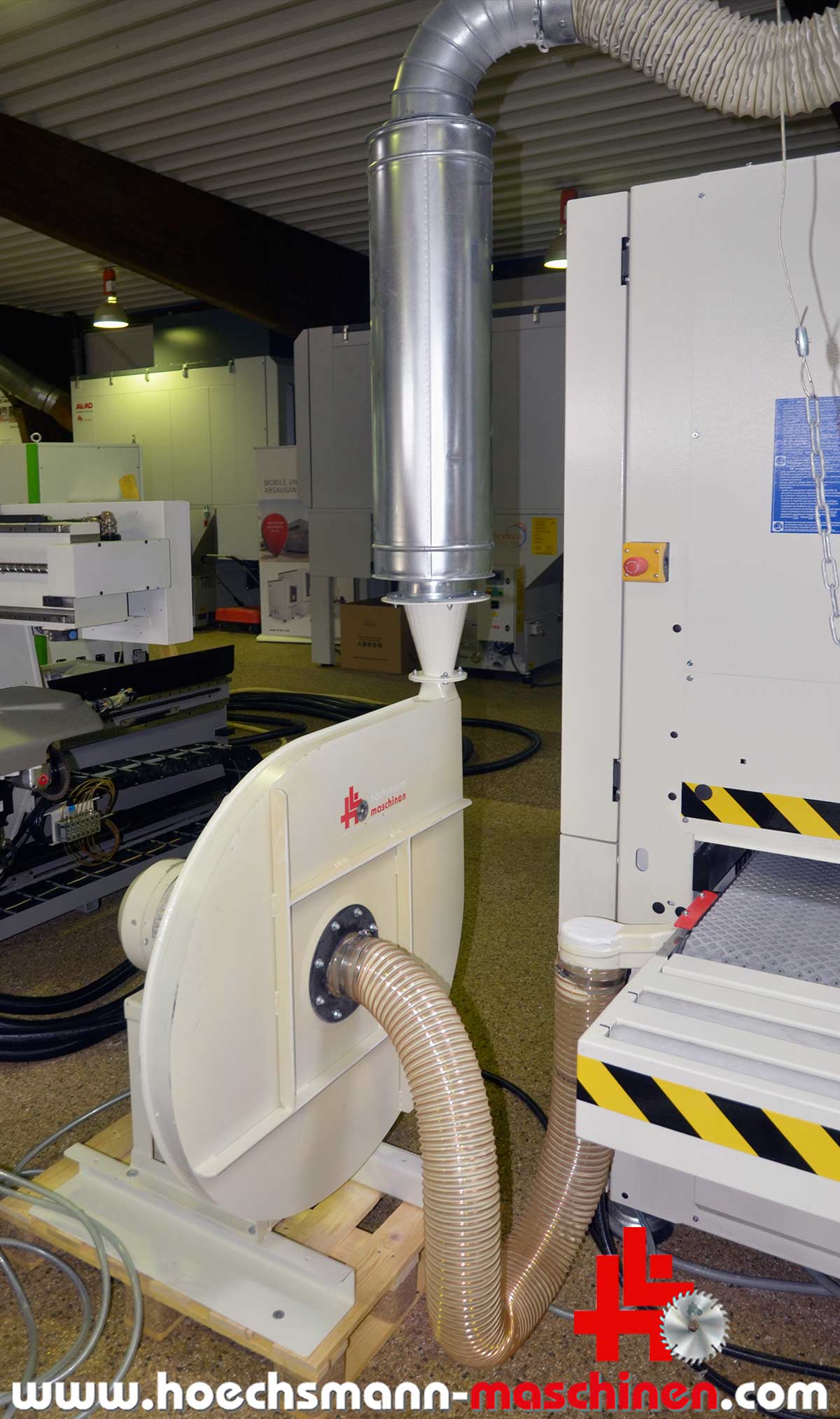

Vacuum sanding table with a 5.5 kW vacuum fan and perforated conveyor belt,
grooved, rubber-coated intermediate pressure rollers between the units,

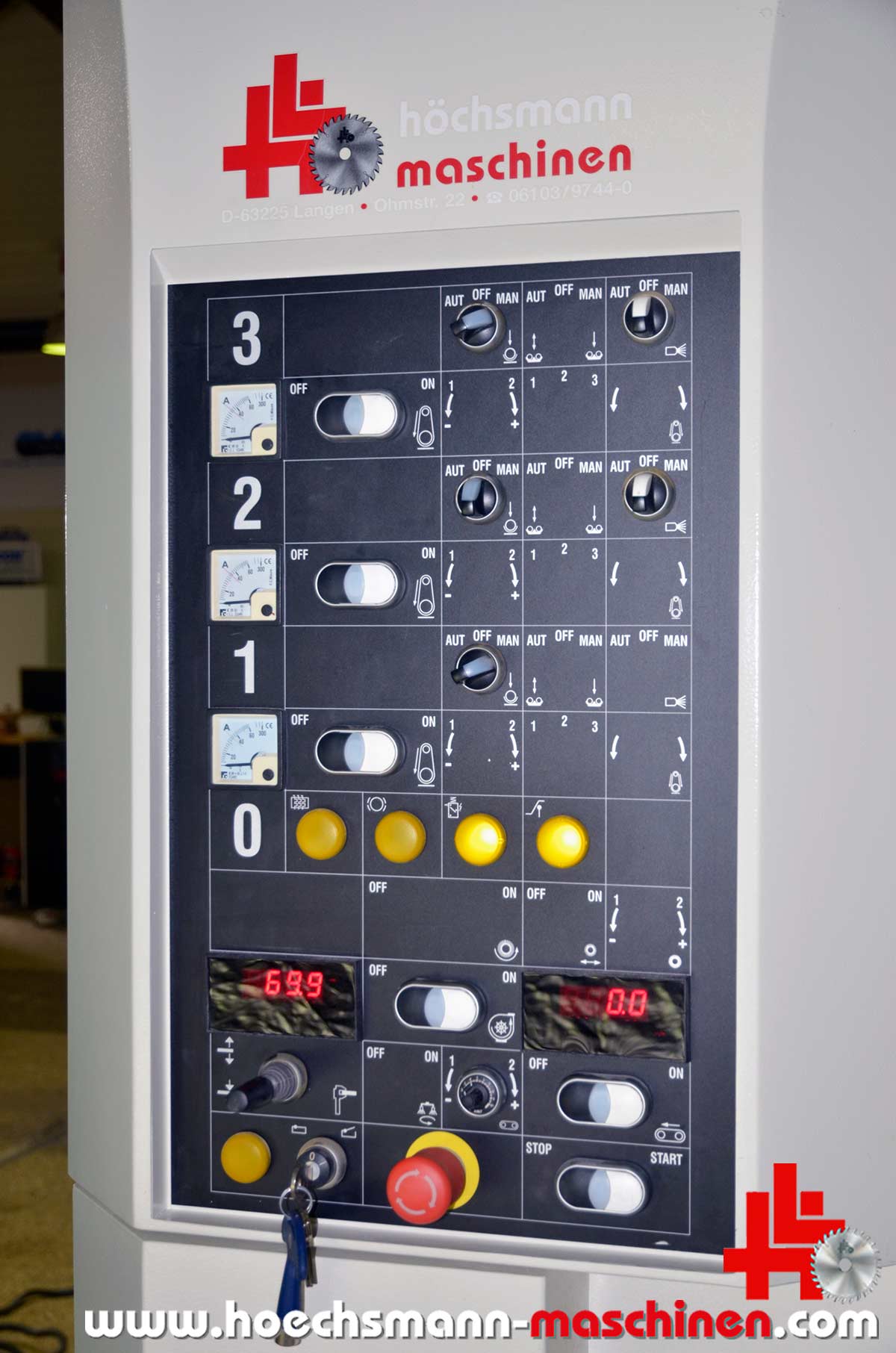

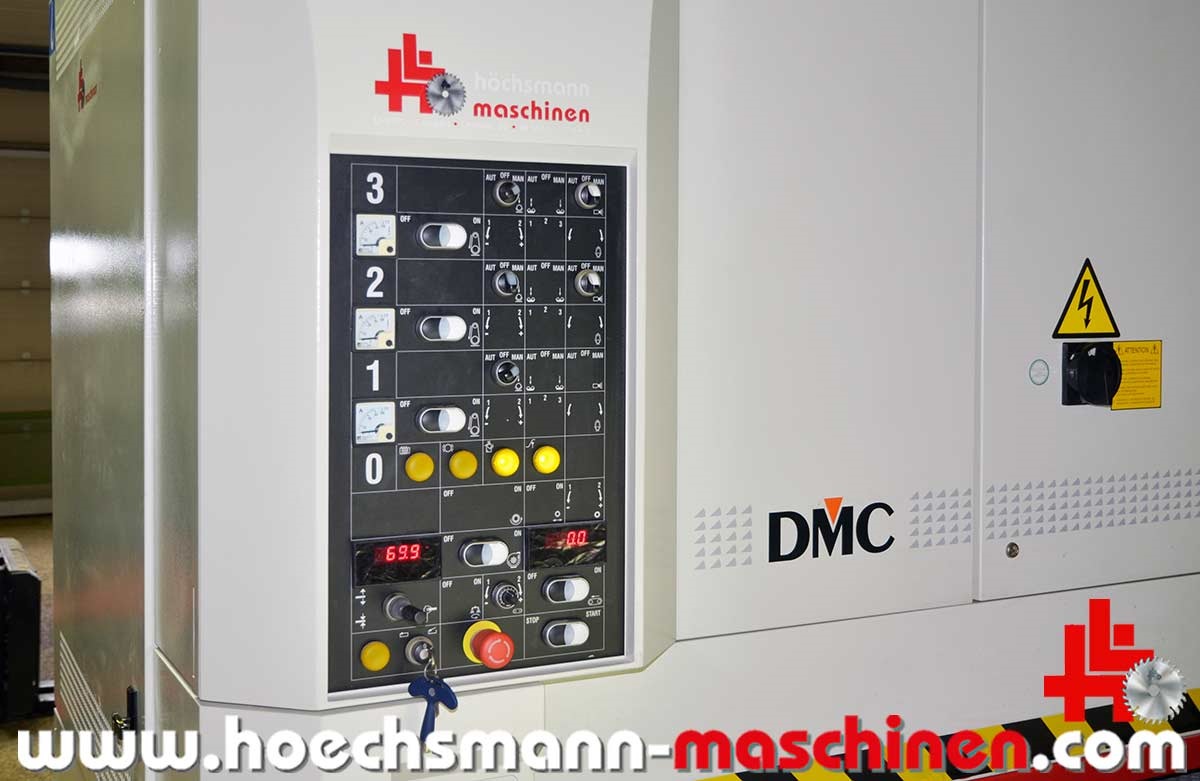

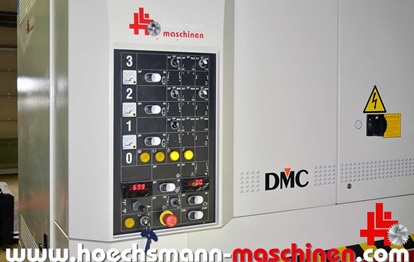

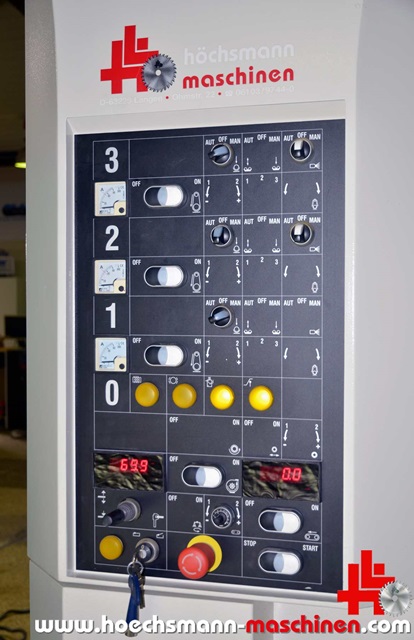

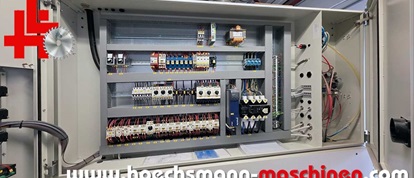

“Pro L” control system with automatic selection of individual units,
3 main motors, 18.5 kW, with electronically controlled sanding belt oscillation via photocells
Joystick control for worktable adjustment
Electronic adjustment of working height; working height of the movable table: 4–170 mm
With automatic workpiece thickness measurement; electronic display of working height
Stepless conveyor belt feed: 3.5–18 m/min with a 0.75 kW inverter-controlled gear motor
Electronic display and adjustment of feed speed at the control panel
Automatic tensioning and centering of the conveyor belt: for easy operation
Automatically oscillating sanding belt cleaning (blow-off device) on the 2nd and 3rd units
Air filter and pressure regulator; contact rollers controllable from the control panel
Support tables at the front (inlet) and rear (outlet), each with 2 rollers
Long sanding belts > 1,370 mm wide and 2,620 mm long --> longer service life
Feeding the sanding belts from the left side of the machine
A new machine ex-factory currently costs over 68.000,- netto
